  9. Rectangular Cable Assemblies Edge Lock R-S 6Ckt 150Mm Sn
Shop All Communication Cables
Molex

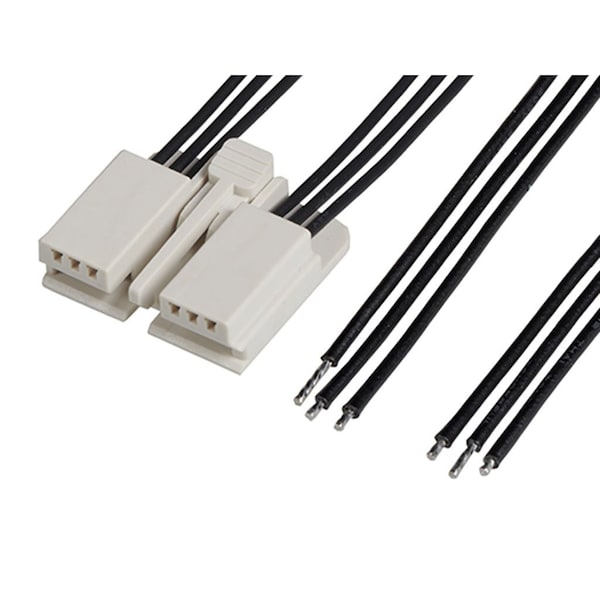

Rectangular Cable Assemblies Edge Lock R-S 6Ckt 150Mm Sn

product price: $6.35
/ea
Sold in multiples of 15 for $95.25
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Series 216331
  • Cable Length 150.00mm
  • Application Signal, Wire-to-Board
  • Type Discrete Wire Assembly
  • Plating min - Mating 1.000µm
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Cable Length 150.00mm
Wire Insulation Diameter 1.10-1.40mm
Wire Size AWG 22

Details

Series 216331
Application Signal, Wire-to-Board
Type Discrete Wire Assembly
Plating min - Mating 1.000µm
Single Ended Yes
Wire/Cable Type UL 10002
Color - Resin Black
Voltage - Maximum 125V
Circuits (Loaded) 6
Material - Metal Phosphor Bronze
Termination Interface: Style Crimp or Compression, Straddle Mount-Edge Card
Pitch - Mating Interface 2.00mm
Material - Plating Mating Tin
Current - Maximum per Contact 3.0A
Material - Resin Nylon
Material - Plating Termination Tin
Product Name EdgeLock
Number of Rows 1
Connector to Connector Edgelock-to-Pigtail
Overmolded No
Assembly Configuration Single Ended Connector
