Molex

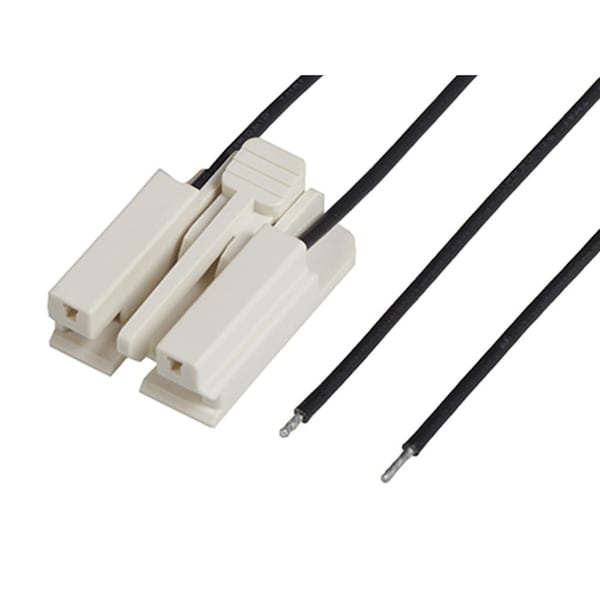

Rectangular Cable Assemblies Edge Lock R-S 2Ckt 300Mm Sn
Mfr # 2163311023
Zoro # G505926062
product price: $3.99
/ea
Sold in multiples of 25 for $99.75
$99.75
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Series 216331
- Type Discrete Wire Assembly
- Cable Length 300.00mm
- Application Signal, Wire-to-Board
- Color - Resin Black
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 2163311023
- Zoro # G505926062
- Country of Origin India
- Category Communication Cables
Dimensions
Cable Length | 300.00mm |
Wire Insulation Diameter | 1.10-1.40mm |
Wire Size AWG | 22 |
Details
Series | 216331 |
Type | Discrete Wire Assembly |
Application | Signal, Wire-to-Board |
Color - Resin | Black |
Plating min - Mating | 1.000µm |
Voltage - Maximum | 125V |
Wire/Cable Type | UL 10002 |
Material - Plating Termination | Tin |
Material - Metal | Phosphor Bronze |
Current - Maximum per Contact | 3.0A |
Single Ended | Yes |
Termination Interface: Style | Crimp or Compression, Straddle Mount-Edge Card |
Pitch - Mating Interface | 2.00mm |
Material - Plating Mating | Tin |
Material - Resin | Nylon |
Circuits (Loaded) | 2 |
Product Name | EdgeLock |
Connector to Connector | Edgelock-to-Pigtail |
Overmolded | No |
Assembly Configuration | Single Ended Connector |
Number of Rows | 1 |
