Molex

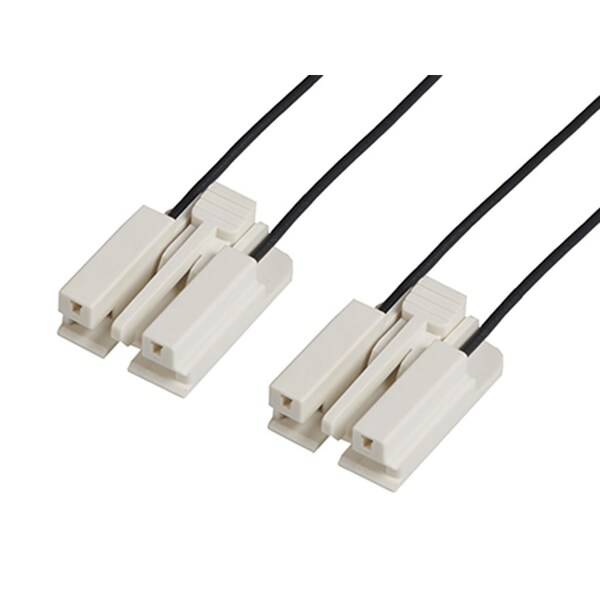

Rectangular Cable Assemblies Edge Lock R-R 2Ckt 100Mm Sn
Mfr # 2163301021
Zoro # G505925720
product price: $6.25
/ea
Sold in multiples of 15 for $93.75
$93.75
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Series 216330
- Cable Length 100.00mm
- Type Discrete Wire Assembly
- Application Signal, Wire-to-Board
- Material - Resin Nylon
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 2163301021
- Zoro # G505925720
- Country of Origin India
- Category Communication Cables
Dimensions
Cable Length | 100.00mm |
Wire Insulation Diameter | 1.10-1.40mm |
Wire Size AWG | 22 |
Details
Series | 216330 |
Type | Discrete Wire Assembly |
Application | Signal, Wire-to-Board |
Material - Resin | Nylon |
Circuits (Loaded) | 2 |
Material - Metal | Phosphor Bronze |
Material - Plating Mating | Tin |
Termination Interface: Style | Crimp or Compression, Straddle Mount-Edge Card |
Voltage - Maximum | 125V |
Material - Plating Termination | Tin |
Color - Resin | Black |
Plating min - Mating | 1.000µm |
Current - Maximum per Contact | 3.0A |
Pitch - Mating Interface | 2.00mm |
Wire/Cable Type | UL 10002 |
Overmolded | No |
Connector to Connector | Edgelock-to-Edgelock |
Single Ended | No |
Assembly Configuration | Dual Ended Connectors |
Product Name | EdgeLock |
Number of Rows | 1 |
