Molex

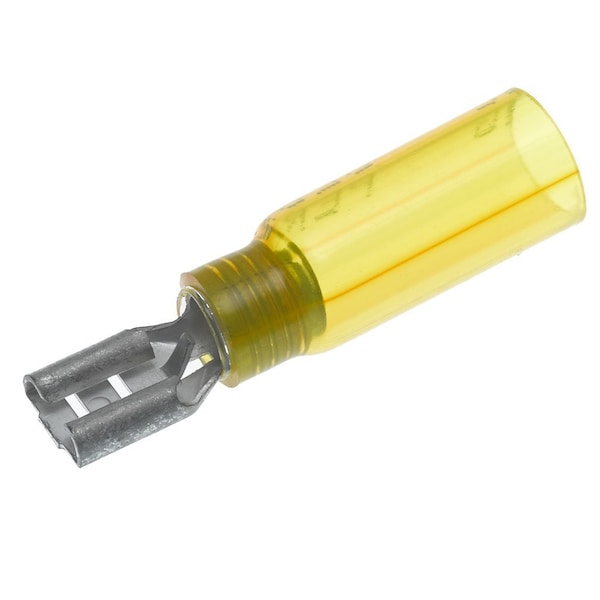

QD PERMA-SEAL .250 X .032 (SC-2143)
Mfr # 19164-0059
Zoro # G2759921
product price: $0.95
/ea
Sold in multiples of 150 for $142.50
$142.50
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Voltage - Maximum 600V
- Tab Width 6.35mm
- Gender Female
- Wire Insulation Diameter 7.62mm max.
- Material - Metal Brass
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 19164-0059
- Zoro # G2759921
- Country of Origin United States
- Category Hazardous Location Plugs
Dimensions
Tab Width | 6.35mm |
Wire Insulation Diameter | 7.62mm max. |
Wire Size mm² | 4.00-6.00 |
Wire Size AWG | 10, 12 |
Details
Voltage - Maximum | 600V |
Gender | Female |
Material - Metal | Brass |
Color - Resin | Yellow |
Barrel Type | Closed |
Tab Thickness | 0.81mm |
Orientation | Straight |
Material - Plating Termination | Tin |
Material - Plating Mating | Tin |
Insulation | NiAc |
Temperature Range - Operating | -55° to +125°C |
