Molex

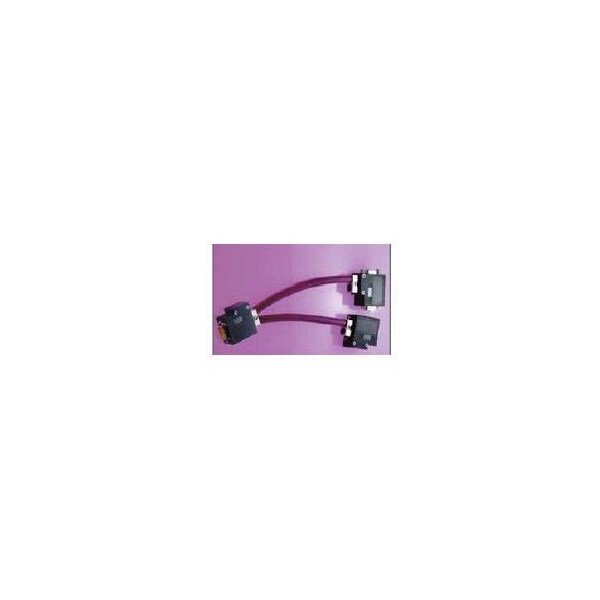

PROFIBUS D-SUB VERT/D-SUB HORZ 1M
Mfr # 1200980199
Zoro # G4036432
product price: $308.99
/ea
Free Shipping & Returns
$308.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- IP Rating IP40
- Gender Male-Male
- Current - Maximum per Contact 4.0A
- Material - Connector Body PUR
- Cable Length 1.0m (3.28')
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 1200980199
- Zoro # G4036432
- UPC # 78172504505
- Country of Origin Unknown
- Category Straight Blade Connectors
Dimensions
Cable Length | 1.0m (3.28') |
Cable Diameter | 8.00mm (.315") |
Wire Size (AWG) | 22 |
Details
IP Rating | IP40 |
Gender | Male-Male |
Current - Maximum per Contact | 4.0A |
Material - Connector Body | PUR |
Type | Double Ended |
Material - Cable Jacket | PUR |
Connector End A | D-Sub (9-pin) |
Keyway | None |
Voltage - Maximum | 250V AC/DC |
Wire/Cable Type | Shielded-Twisted Pair |
Connector End B | D-Sub (9-pin) |
Coupling Style | Threaded |
Color - Cable Jacket | Violet |
Material - Coupling Nut | Gray Anodized Aluminum |
Temperature Range - Operating | 0° to +60°C |
LED Indicator | No |
Orientation | 90° to Straight |
Series | 120098 |
Product Name | PROFIBUS |
Poles | 9 |
