Shop All Communication Cables
Molex

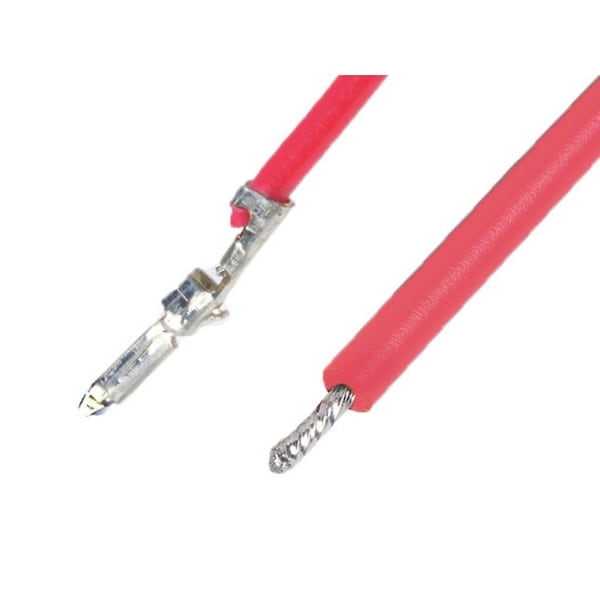

Pre-Crimped Lead Picoblade Male-To-Pigtail, Tin Plated, 450.00Mm Length
Mfr # 2149231225
Zoro # G305925685
Sold in multiples of 3000 for $3,000.00
$3,000.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Series 214923
- Cable Length 450.00mm
- Material - Metal Phosphor Bronze
- Material - Plating Termination Tin
- Gender Male-Pigtail
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Molex
- MFR # 2149231225
- Zoro # G305925685
- Country of Origin India
- Category Communication Cables
Dimensions
Cable Length | 450.00mm |
Wire Size AWG | 26 |
Wire Insulation Diameter | 0.50-1.00mm |
Details
Series | 214923 |
Material - Metal | Phosphor Bronze |
Material - Plating Termination | Tin |
Gender | Male-Pigtail |
Circuits (Loaded) | 1 |
Color - Resin | Red |
Termination Interface: Style | Crimp or Compression |
Wire/Cable Type | UL 1061 |
Voltage - Maximum | 125V AC (RMS)/DC |
Material - Plating Mating | Tin |
Current - Maximum per Contact | 1.0A |
Single Ended | Yes |
Pitch - Mating Interface | 1.25mm |
Product Name | PicoBlade |
Connector to Connector | PicoBlade Terminal-to-Pigtail |
Assembly Configuration | Pre-crimped Lead Only |
