  9. Pre-Crimped Lead Picoblade Male-To-Pigtail, Tin Plated, 300.00Mm Length
Shop All Communication Cables
Molex

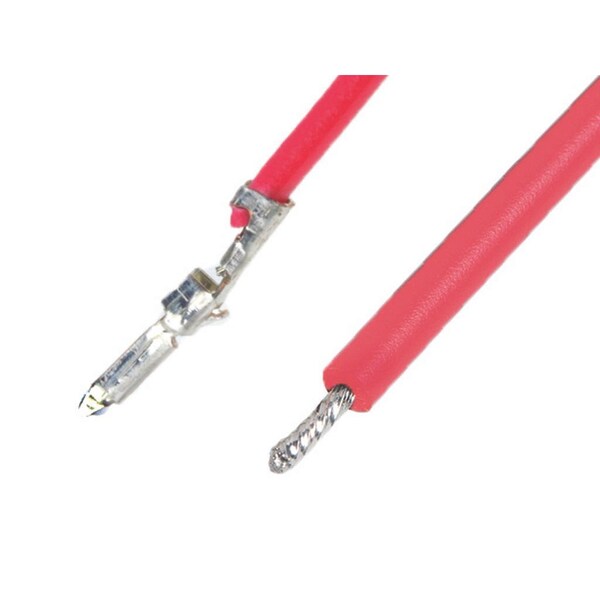

Pre-Crimped Lead Picoblade Male-To-Pigtail, Tin Plated, 300.00Mm Length

product price: $1.00
/ea
Sold in multiples of 3000 for $3,000.00
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Series 214923
  • Cable Length 300.00mm
  • Wire Size AWG 28
  • Single Ended Yes
  • Voltage - Maximum 125V AC (RMS)/DC
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Cable Length 300.00mm
Wire Size AWG 28
Wire Insulation Diameter 0.50-1.00mm

Details

Series 214923
Single Ended Yes
Voltage - Maximum 125V AC (RMS)/DC
Circuits (Loaded) 1
Gender Male-Pigtail
Material - Plating Termination Tin
Plating min - Mating 0.889µm
Material - Metal Phosphor Bronze
Termination Interface: Style Crimp or Compression
Color - Resin Red
Material - Plating Mating Tin
Wire/Cable Type UL 1061
Current - Maximum per Contact 1.0A
Pitch - Mating Interface 1.25mm
Assembly Configuration Pre-crimped Lead Only
Connector to Connector PicoBlade Terminal-to-Pigtail
Product Name PicoBlade
