  9. Pre-Crimped Lead Picoblade Female-To-Pigtail, Tin Plated, 75.00Mm Length
Shop All Communication Cables
Molex

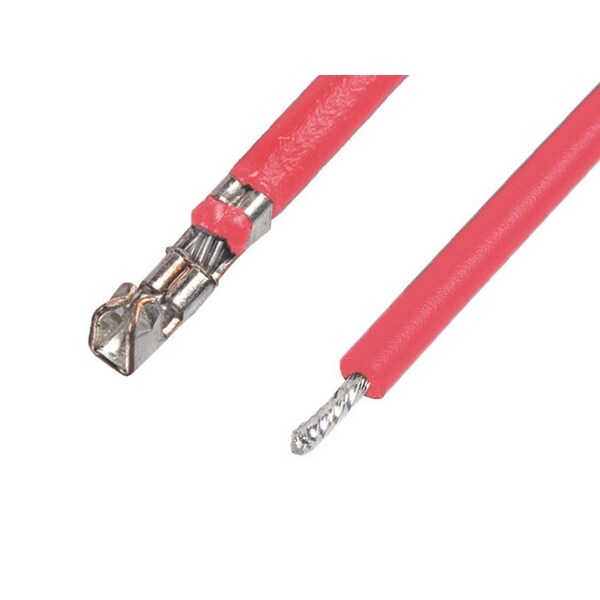

Pre-Crimped Lead Picoblade Female-To-Pigtail, Tin Plated, 75.00Mm Length

product price: $1.00
/ea
Sold in multiples of 3000 for $3,000.00
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Series 214921
  • Cable Length 75.00mm
  • Gender Female-Pigtail
  • Wire Size AWG 26
  • Material - Metal Phosphor Bronze
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Cable Length 75.00mm
Wire Size AWG 26
Wire Insulation Diameter 1.04mm max.

Details

Series 214921
Gender Female-Pigtail
Material - Metal Phosphor Bronze
Wire/Cable Type UL 1061
Voltage - Maximum 125V AC (RMS)/DC
Current - Maximum per Contact 1.0A
Material - Plating Mating Tin
Pitch - Mating Interface 1.25mm
Material - Plating Termination Tin
Single Ended Yes
Color - Resin Red
Circuits (Loaded) 1
Plating min - Mating 0.889µm
Termination Interface: Style Crimp or Compression
Connector to Connector PicoBlade Terminal-to-Pigtail
Product Name PicoBlade
Assembly Configuration Pre-crimped Lead Only
