Shop All Communication Cables
Molex

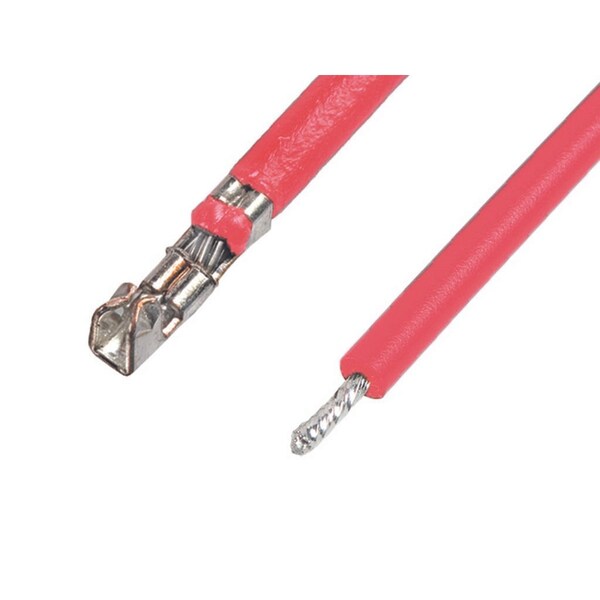

Pre-Crimped Lead Picoblade Female-To-Pigtail, Tin Plated, 75.00Mm Length
Mfr # 2149211121
Zoro # G305926019
Sold in multiples of 3000 for $3,000.00
$3,000.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Cable Length 75.00mm
- Single Ended Yes
- Wire Insulation Diameter 1.04mm max.
- Current - Maximum per Contact 1.0A
- Gender Female-Pigtail
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Molex
- MFR # 2149211121
- Zoro # G305926019
- Country of Origin India
- Category Communication Cables
Dimensions
Cable Length | 75.00mm |
Wire Insulation Diameter | 1.04mm max. |
Wire Size AWG | 28 |
Details
Single Ended | Yes |
Current - Maximum per Contact | 1.0A |
Gender | Female-Pigtail |
Color - Resin | Red |
Material - Plating Termination | Tin |
Material - Plating Mating | Tin |
Termination Interface: Style | Crimp or Compression |
Pitch - Mating Interface | 1.25mm |
Plating min - Mating | 0.889µm |
Circuits (Loaded) | 1 |
Wire/Cable Type | UL 1061 |
Voltage - Maximum | 125V AC (RMS)/DC |
Material - Metal | Phosphor Bronze |
