Molex

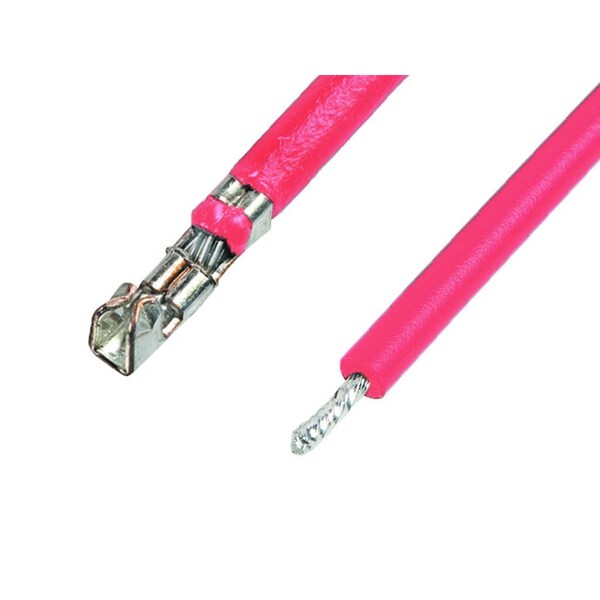

Pre-Crimped Lead Picoblade Female-To-Pigtail, Tin Plated, 450.00Mm Length
Mfr # 2149211225
Zoro # G105925618
product price: $1.00
/ea
Sold in multiples of 3000 for $3,000.00
$3,000.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Series 214921
- Cable Length 450.00mm
- Wire Insulation Diameter 1.04mm max.
- Single Ended Yes
- Wire/Cable Type UL 1061
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 2149211225
- Zoro # G105925618
- Country of Origin India
- Category Communication Cables
Dimensions
Cable Length | 450.00mm |
Wire Insulation Diameter | 1.04mm max. |
Wire Size AWG | 26 |
Details
Series | 214921 |
Single Ended | Yes |
Wire/Cable Type | UL 1061 |
Material - Plating Mating | Tin |
Pitch - Mating Interface | 1.25mm |
Material - Plating Termination | Tin |
Color - Resin | Red |
Voltage - Maximum | 125V AC (RMS)/DC |
Gender | Female-Pigtail |
Material - Metal | Phosphor Bronze |
Termination Interface: Style | Crimp or Compression |
Current - Maximum per Contact | 1.0A |
Circuits (Loaded) | 1 |
Plating min - Mating | 0.889µm |
Assembly Configuration | Pre-crimped Lead Only |
Product Name | PicoBlade |
Connector to Connector | PicoBlade Terminal-to-Pigtail |
