  9. Pre-Crimped Lead Picoblade Female-To-Pigtail, Tin Plated, 225.00Mm Length
Shop All Communication Cables
Molex

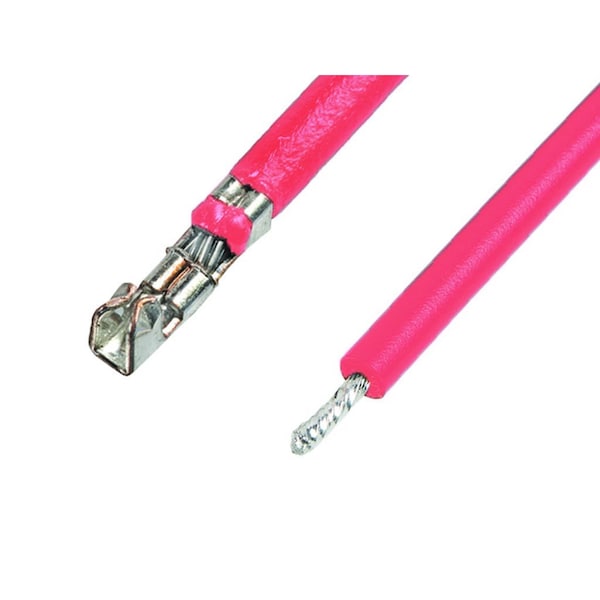

Pre-Crimped Lead Picoblade Female-To-Pigtail, Tin Plated, 225.00Mm Length

product price: $1.25
/ea
Sold in multiples of 75 for $93.75
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Series 214921
  • Cable Length 225.00mm
  • Current - Maximum per Contact 1.0A
  • Single Ended Yes
  • Wire/Cable Type UL 1061
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Cable Length 225.00mm
Wire Size AWG 28
Wire Insulation Diameter 1.04mm max.

Details

Series 214921
Current - Maximum per Contact 1.0A
Single Ended Yes
Wire/Cable Type UL 1061
Gender Female-Pigtail
Circuits (Loaded) 1
Material - Plating Termination Tin
Voltage - Maximum 125V AC (RMS)/DC
Plating min - Mating 0.889µm
Pitch - Mating Interface 1.25mm
Termination Interface: Style Crimp or Compression
Material - Metal Phosphor Bronze
Color - Resin Red
Material - Plating Mating Tin
Product Name PicoBlade
Connector to Connector PicoBlade Terminal-to-Pigtail
Assembly Configuration Pre-crimped Lead Only
