Shop All Communication Cables
Molex

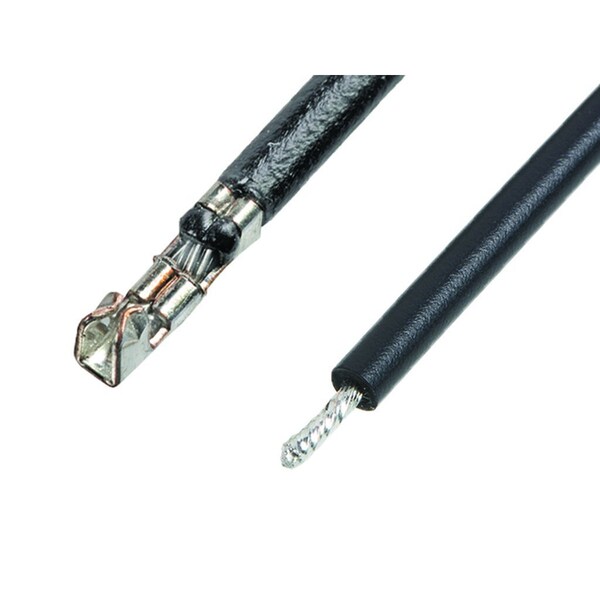

Pre-Crimped Lead Picoblade Female-To-Pigtail, Tin Plated, 150.00Mm Length
Mfr # 2149211112
Zoro # G005926005
product price: $1.00
/ea
Sold in multiples of 3000 for $3,000.00
$3,000.00
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Series 214921
- Cable Length 150.00mm
- Plating min - Mating 0.889µm
- Single Ended Yes
- Wire Size AWG 28
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 2149211112
- Zoro # G005926005
- Country of Origin India
- Category Communication Cables
Dimensions
Cable Length | 150.00mm |
Wire Size AWG | 28 |
Wire Insulation Diameter | 1.04mm max. |
Details
Series | 214921 |
Plating min - Mating | 0.889µm |
Single Ended | Yes |
Circuits (Loaded) | 1 |
Material - Plating Mating | Tin |
Voltage - Maximum | 125V AC (RMS)/DC |
Gender | Female-Pigtail |
Material - Plating Termination | Tin |
Wire/Cable Type | UL 1061 |
Termination Interface: Style | Crimp or Compression |
Material - Metal | Phosphor Bronze |
Pitch - Mating Interface | 1.25mm |
Color - Resin | Black |
Current - Maximum per Contact | 1.0A |
Assembly Configuration | Pre-crimped Lead Only |
Connector to Connector | PicoBlade Terminal-to-Pigtail |
Product Name | PicoBlade |
