  9. Pre-Crimped Lead Picoblade Female-To-Pigtail, Gold Plated, 300.00Mm Length
Shop All Communication Cables
Molex

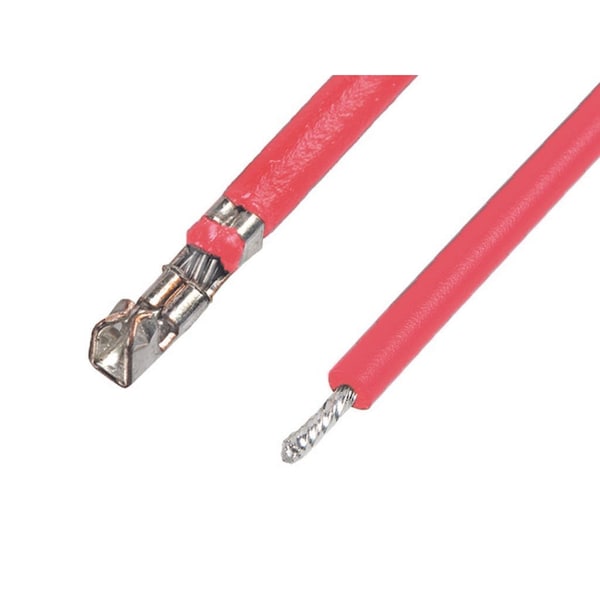

Pre-Crimped Lead Picoblade Female-To-Pigtail, Gold Plated, 300.00Mm Length

product price: $1.00
/ea
Sold in multiples of 95 for $95.00
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Series 214921
  • Cable Length 300.00mm
  • Material - Plating Mating Gold
  • Wire Size AWG 26
  • Circuits (Loaded) 1
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Cable Length 300.00mm
Wire Size AWG 26
Wire Insulation Diameter 1.04mm max.

Details

Series 214921
Material - Plating Mating Gold
Circuits (Loaded) 1
Gender Female-Pigtail
Wire/Cable Type UL 1061
Material - Plating Termination Tin
Color - Resin Red
Voltage - Maximum 125V AC (RMS)/DC
Current - Maximum per Contact 1.0A
Pitch - Mating Interface 1.25mm
Termination Interface: Style Crimp or Compression
Plating min - Mating 0.380µm
Single Ended Yes
Material - Metal Phosphor Bronze
Product Name PicoBlade
Connector to Connector PicoBlade Terminal-to-Pigtail
Assembly Configuration Pre-crimped Lead Only
