  9. Pre-Crimped Lead Picoblade Female-To-Pigtail, Gold (Au) Plating, 300.00Mm
Shop All Communication Cables
Molex

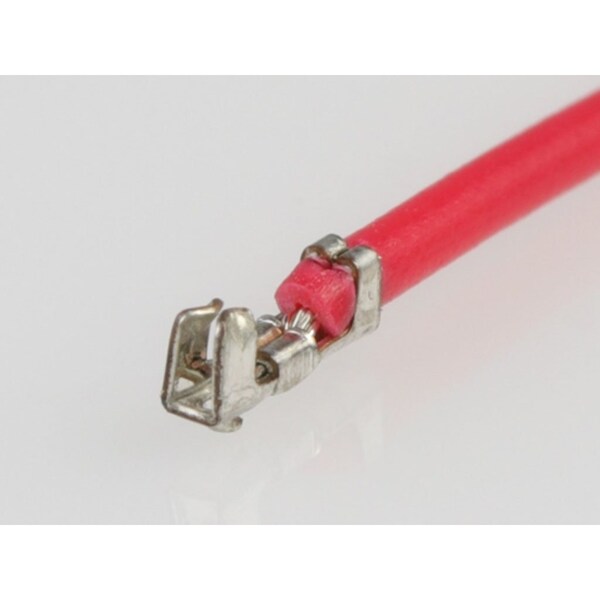

Pre-Crimped Lead Picoblade Female-To-Pigtail, Gold (Au) Plating, 300.00Mm

product price: $1.19
/ea
Sold in multiples of 2500 for $2,975.00
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Cable Length 300.00mm
  • Wire/Cable Type UL 1061
  • Voltage - Maximum 125V AC (RMS)/DC
  • Material - Plating Mating Gold
  • Termination Interface: Style Crimp or Compression
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Cable Length 300.00mm
Wire Insulation Diameter 1.04mm max.
Wire Size AWG 26

Details

Wire/Cable Type UL 1061
Voltage - Maximum 125V AC (RMS)/DC
Material - Plating Mating Gold
Termination Interface: Style Crimp or Compression
Single Ended Yes
Plating min - Mating 0.380µm
Material - Metal Phosphor Bronze
Color - Resin Red
Material - Plating Termination Tin
Current - Maximum per Contact 1.0A
Gender Female-Pigtail
Pitch - Mating Interface 1.25mm
Circuits (Loaded) 1
