  9. Pre-Crimped Lead Picoblade Female-To-Pigtail, Gold (Au) Plating, 150.00Mm
Shop All Communication Cables
Molex

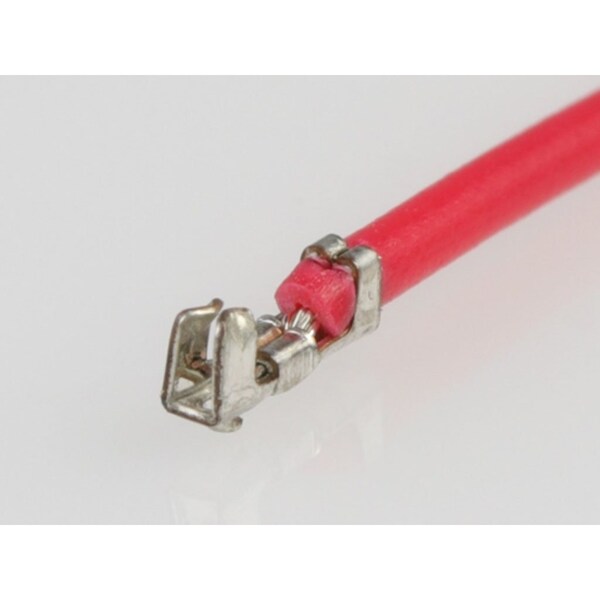

Pre-Crimped Lead Picoblade Female-To-Pigtail, Gold (Au) Plating, 150.00Mm

product price: $1.69
/ea
Sold in multiples of 65 for $109.85
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Cable Length 150.00mm
  • Circuits (Loaded) 1
  • Material - Metal Phosphor Bronze
  • Termination Interface: Style Crimp or Compression
  • Voltage - Maximum 125V AC (RMS)/DC
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Cable Length 150.00mm
Wire Insulation Diameter 1.04mm max.
Wire Size AWG 26

Details

Circuits (Loaded) 1
Material - Metal Phosphor Bronze
Termination Interface: Style Crimp or Compression
Voltage - Maximum 125V AC (RMS)/DC
Material - Plating Termination Tin
Gender Female-Pigtail
Wire/Cable Type UL 1061
Material - Plating Mating Gold
Plating min - Mating 0.380µm
Pitch - Mating Interface 1.25mm
Single Ended Yes
Color - Resin Red
Current - Maximum per Contact 1.0A
