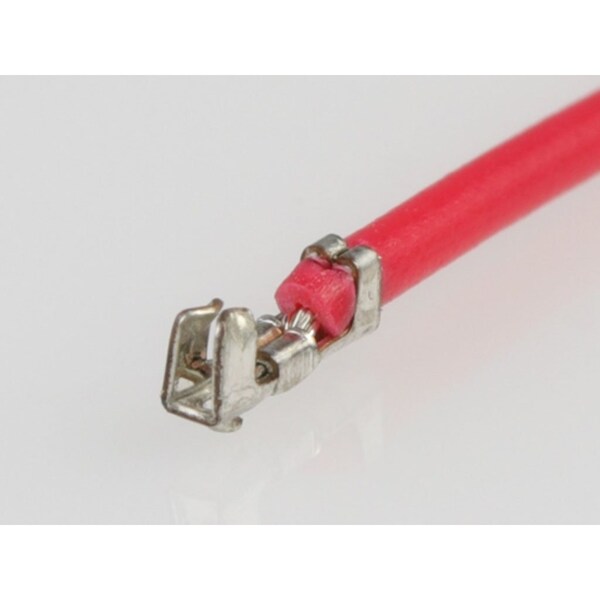

Pre-Crimped Lead Picoblade Female-To-Pigtail, Gold (Au) Plating, 150.00Mm
Mfr # 2149212212
Zoro # G205925976
product price: $1.55
/ea
Sold in multiples of 65 for $100.75
$100.75
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Cable Length 150.00mm
- Gender Female-Pigtail
- Termination Interface: Style Crimp or Compression
- Pitch - Mating Interface 1.25mm
- Color - Resin Black
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 2149212212
- Zoro # G205925976
- Country of Origin India
- Category Communication Cables
Dimensions
Cable Length | 150.00mm |
Wire Insulation Diameter | 1.04mm max. |
Wire Size AWG | 26 |
Details
Gender | Female-Pigtail |
Termination Interface: Style | Crimp or Compression |
Pitch - Mating Interface | 1.25mm |
Color - Resin | Black |
Material - Metal | Phosphor Bronze |
Plating min - Mating | 0.380µm |
Voltage - Maximum | 125V AC (RMS)/DC |
Circuits (Loaded) | 1 |
Material - Plating Termination | Tin |
Single Ended | Yes |
Wire/Cable Type | UL 1061 |
Current - Maximum per Contact | 1.0A |
Material - Plating Mating | Gold |
