Molex

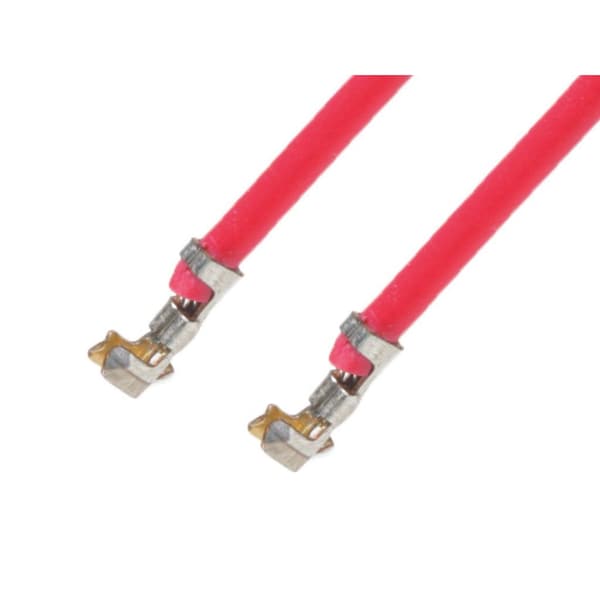

Pre-Crimped Lead Picoblade Female-To-Picoblade Female, Gold (Au) Plating

product price: $1.35
/ea
Sold in multiples of 1250 for $1,687.50
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Cable Length 300.00mm
  • Termination Interface: Style Crimp or Compression
  • Pitch - Mating Interface 1.25mm
  • Color - Resin Red
  • Voltage - Maximum 125V AC (RMS)/DC
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Cable Length 300.00mm
Wire Size AWG 26
Wire Insulation Diameter 1.04mm max.

Details

Termination Interface: Style Crimp or Compression
Pitch - Mating Interface 1.25mm
Color - Resin Red
Voltage - Maximum 125V AC (RMS)/DC
Material - Plating Mating Gold
Circuits (Loaded) 1
Material - Plating Termination Tin
Current - Maximum per Contact 1.0A
Gender Female-Female
Plating min - Mating 0.380µm
Wire/Cable Type UL 1061
Material - Metal Phosphor Bronze
