Molex

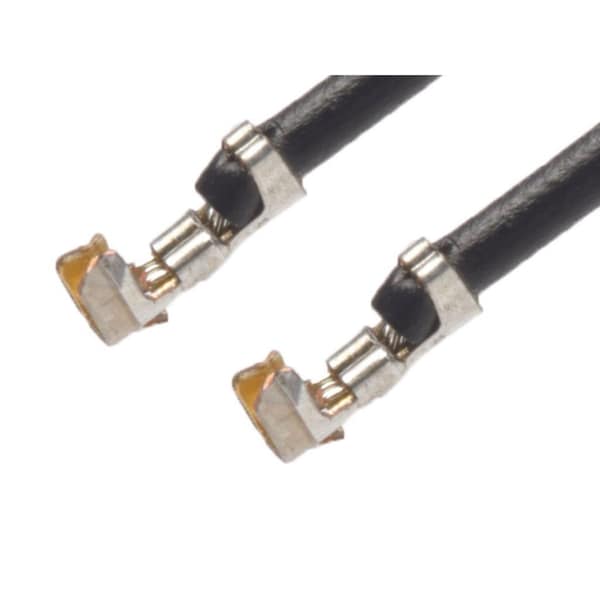

Pre-Crimped Lead Picoblade Female-To-Picoblade Female, Gold (Au) Plating
Mfr # 2149202214
Zoro # G305925883
Sold in multiples of 2500 for $2,975.00
$2,975.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Series 214920
- Cable Length 300.00mm
- Circuits (Loaded) 1
- Pitch - Mating Interface 1.25mm
- Wire Insulation Diameter 1.04mm max.
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Molex
- MFR # 2149202214
- Zoro # G305925883
- Country of Origin India
- Category Communication Cables
Dimensions
Cable Length | 300.00mm |
Wire Insulation Diameter | 1.04mm max. |
Wire Size AWG | 26 |
Details
Series | 214920 |
Circuits (Loaded) | 1 |
Pitch - Mating Interface | 1.25mm |
Plating min - Mating | 0.380µm |
Current - Maximum per Contact | 1.0A |
Gender | Female-Female |
Material - Plating Termination | Tin |
Material - Metal | Phosphor Bronze |
Voltage - Maximum | 125V AC (RMS)/DC |
Wire/Cable Type | UL 1061 |
Color - Resin | Black |
Termination Interface: Style | Crimp or Compression |
Material - Plating Mating | Gold |
Single Ended | No |
Product Name | PicoBlade |
Assembly Configuration | Pre-crimped Lead Only |
Connector to Connector | PicoBlade Crimp Terminals |
