  9. Pre-Crimped Lead Picoblade Female-To-Picoblade Female, Gold (Au) Plating
Shop All Communication Cables
Molex

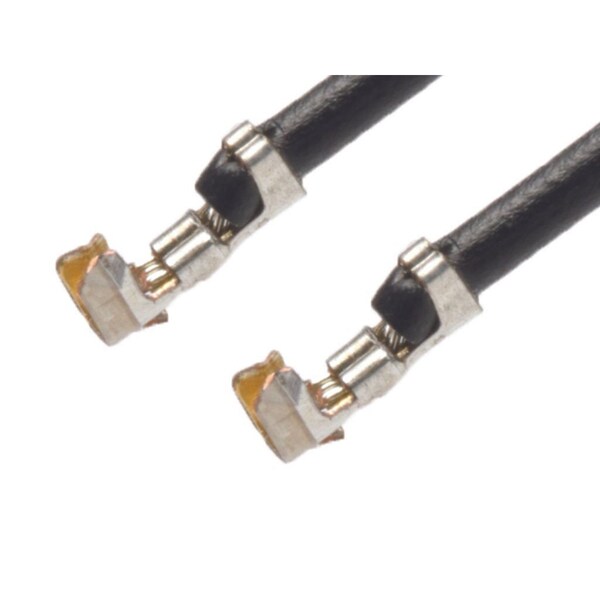

Pre-Crimped Lead Picoblade Female-To-Picoblade Female, Gold (Au) Plating

product price: $1.19
/ea
Sold in multiples of 2500 for $2,975.00
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Series 214920
  • Cable Length 225.00mm
  • Wire/Cable Type UL 1061
  • Current - Maximum per Contact 1.0A
  • Wire Insulation Diameter 1.04mm max.
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Cable Length 225.00mm
Wire Insulation Diameter 1.04mm max.
Wire Size AWG 26

Details

Series 214920
Wire/Cable Type UL 1061
Current - Maximum per Contact 1.0A
Plating min - Mating 0.380µm
Material - Plating Mating Gold
Material - Plating Termination Tin
Material - Metal Phosphor Bronze
Voltage - Maximum 125V AC (RMS)/DC
Color - Resin Black
Pitch - Mating Interface 1.25mm
Termination Interface: Style Crimp or Compression
Circuits (Loaded) 1
Gender Female-Female
Product Name PicoBlade
Connector to Connector PicoBlade Crimp Terminals
Single Ended No
Assembly Configuration Pre-crimped Lead Only
