Molex

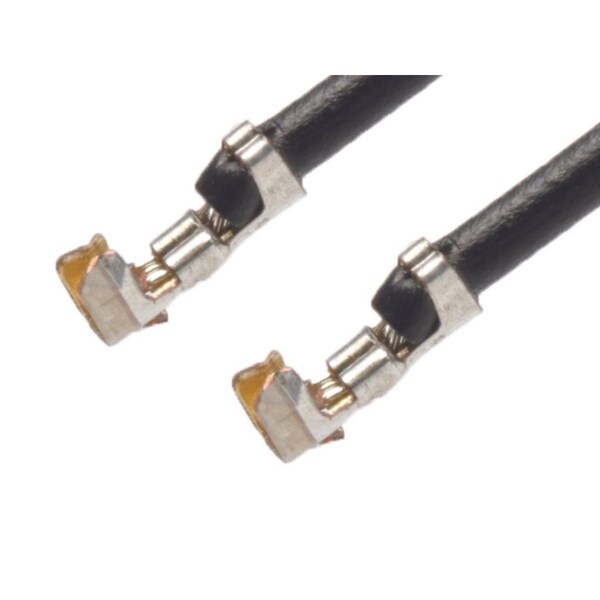

Pre-Crimped Lead Picoblade Female-To-Picoblade Female, Gold (Au) Plating

product price: $1.19
/ea
Sold in multiples of 2500 for $2,975.00
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Cable Length 150.00mm
  • Material - Plating Mating Gold
  • Wire/Cable Type UL 1061
  • Material - Plating Termination Tin
  • Plating min - Mating 0.380µm
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Cable Length 150.00mm
Wire Insulation Diameter 1.04mm max.
Wire Size AWG 26

Details

Material - Plating Mating Gold
Wire/Cable Type UL 1061
Material - Plating Termination Tin
Plating min - Mating 0.380µm
Termination Interface: Style Crimp or Compression
Pitch - Mating Interface 1.25mm
Color - Resin Black
Current - Maximum per Contact 1.0A
Circuits (Loaded) 1
Voltage - Maximum 125V AC (RMS)/DC
Material - Metal Phosphor Bronze
Gender Female-Female
