Shop All High Temperature Lead Wire
Molex

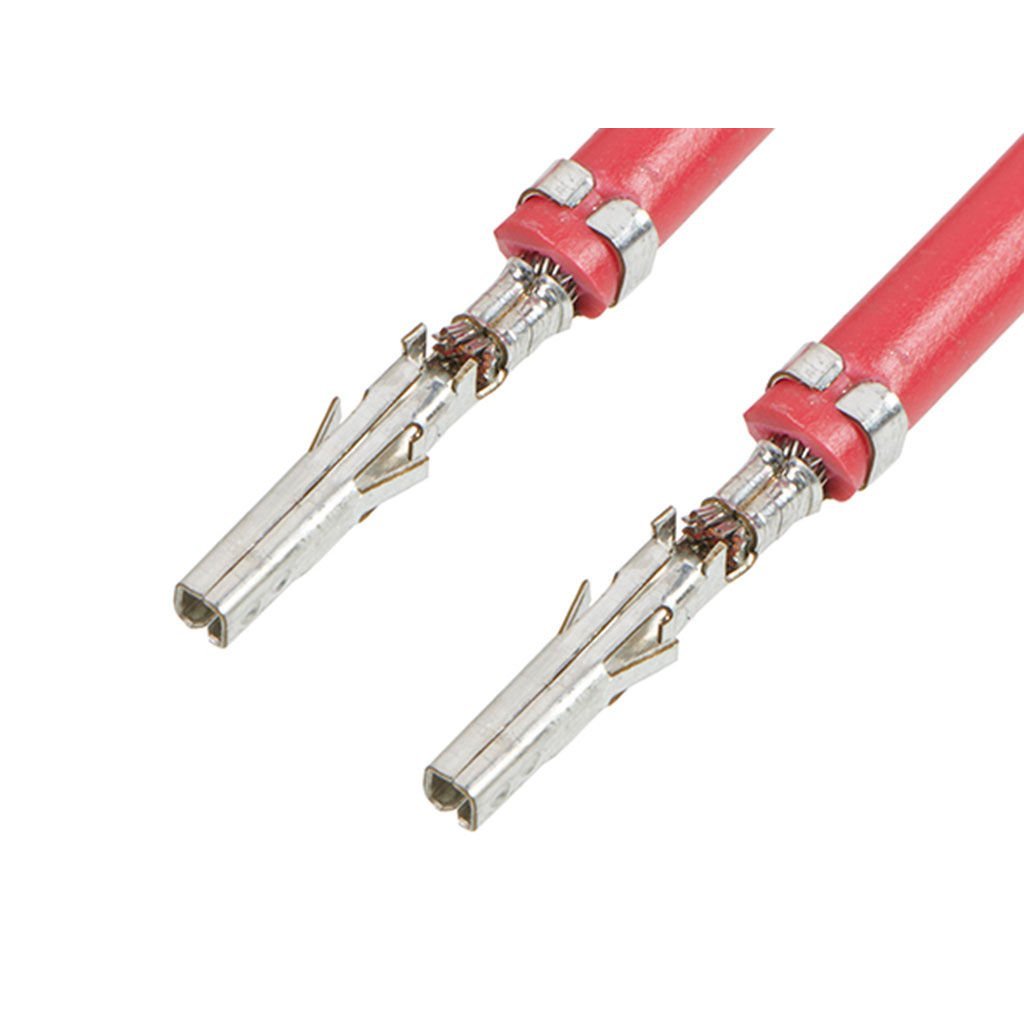

Pre-Crimped Lead Mini-Fit Jr. Female-To-Mini-Fit Jr. Female, Tin (Sn) Plating
Mfr # 2153402124
Zoro # G605922339
product price: $1.15
/ea
Sold in multiples of 1500 for $1,725.00
$1,725.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Series 215340
- Application Power, Wire-to-Board, Wire-to-Wire
- Voltage 600V
- Jacket Color Red
- Conductor Material Brass
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 2153402124
- Zoro # G605922339
- Country of Origin Thailand
- Category High Temperature Lead Wire
Dimensions
Spool Length | 300 mm |
Wire Insulation Diameter | 1.80-3.10mm |
Cable Length | 300.00mm |
Wire Size (AWG) | 16 |
Details
Series | 215340 |
Application | Power, Wire-to-Board, Wire-to-Wire |
Voltage | 600V |
Jacket Color | Red |
Conductor Material | Brass |
Standards | UL 1015 |
Wire Gauge | 16 AWG |
Max. Amps | 9 A |
Product Name | Mini-Fit Jr. |
Termination Interface Style | Crimp or Compression |
Current - Maximum per Contact | 9.0A |
Assembly Configuration | Pre-crimped Lead Only |
Material - Plating Mating | Tin |
Gender | Female-Female |
Single Ended | No |
Material - Plating Termination | Tin |
Connector to Connector | Mini-Fit Jr. Crimp Terminals |
Circuits (Loaded) | 1 |
