Molex

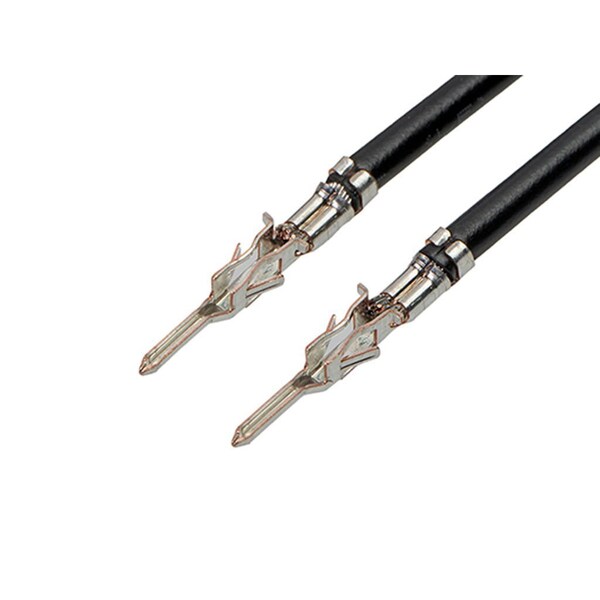

Pre-Crimped Lead Micro-Fit 3.0 Male-To-Micro-Fit 3.0 Male, Tin (Sn) Plated

product price: $1.15
/ea
Sold in multiples of 1500 for $1,725.00
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Series 214762
  • Application Power, Wire-to-Wire
  • Jacket Color Black
  • Standards UL 10002
  • Max. Amps 8.5A
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Spool Length 300 mm
Wire Insulation Diameter 1.85mm max.
Cable Length 300.00mm
Wire Size (AWG) 18

Details

Series 214762
Application Power, Wire-to-Wire
Jacket Color Black
Standards UL 10002
Max. Amps 8.5A
Wire Gauge 18 AWG
Conductor Material Phosphor Bronze
Single Ended No
Termination Interface Style Crimp or Compression
Assembly Configuration Pre-crimped Lead Only
Product Name Micro-Fit 3.0
Connector to Connector Micro-Fit 3.0 Crimp Terminals
Material - Plating Termination Tin
Plating min - Mating 1.016µm
Material - Plating Mating Tin
Gender Male-Male
Circuits (Loaded) 1
