Shop All High Temperature Lead Wire
Molex

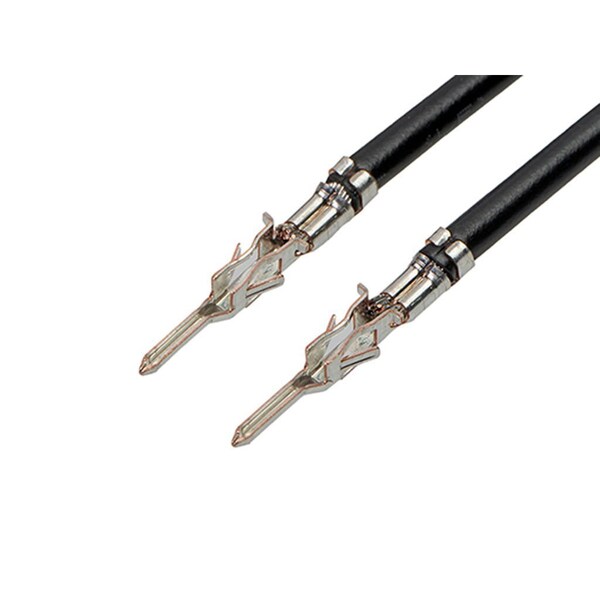

Pre-Crimped Lead Micro-Fit 3.0 Male-To-Micro-Fit 3.0 Male, Tin (Sn) Plated
Mfr # 2147621122
Zoro # G405922522
product price: $1.15
/ea
Sold in multiples of 1500 for $1,725.00
$1,725.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Series 214762
- Application Power, Wire-to-Wire
- Max. Amps 8.5A
- Jacket Color Black
- Spool Length 150 mm
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 2147621122
- Zoro # G405922522
- Country of Origin Thailand
- Category High Temperature Lead Wire
Dimensions
Spool Length | 150 mm |
Wire Size (AWG) | 18 |
Cable Length | 150.00mm |
Wire Insulation Diameter | 1.85mm max. |
Details
Series | 214762 |
Application | Power, Wire-to-Wire |
Max. Amps | 8.5A |
Jacket Color | Black |
Wire Gauge | 18 AWG |
Standards | UL 10002 |
Conductor Material | Phosphor Bronze |
Termination Interface Style | Crimp or Compression |
Material - Plating Termination | Tin |
Product Name | Micro-Fit 3.0 |
Gender | Male-Male |
Plating min - Mating | 1.016µm |
Single Ended | No |
Circuits (Loaded) | 1 |
Assembly Configuration | Pre-crimped Lead Only |
Material - Plating Mating | Tin |
Connector to Connector | Micro-Fit 3.0 Crimp Terminals |
