Shop All High Temperature Lead Wire
Molex

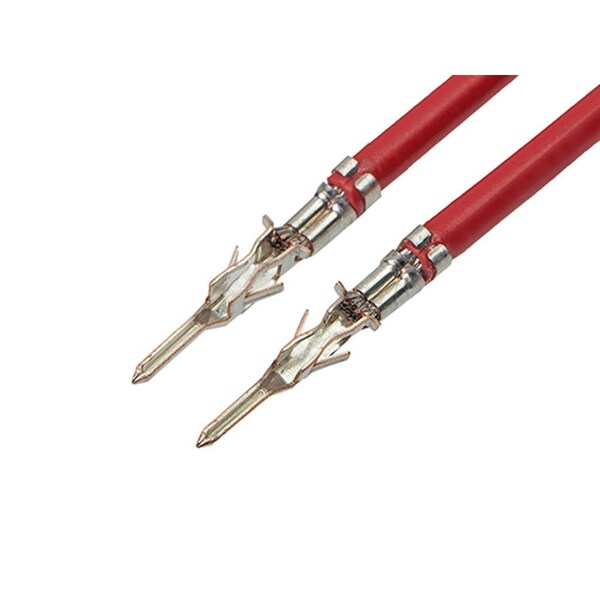

Pre-Crimped Lead Micro-Fit 3.0 Male-To-Micro-Fit 3.0 Male, Gold (Au) Plated
Mfr # 2147622224
Zoro # G605922247
product price: $1.35
/ea
Sold in multiples of 1250 for $1,687.50
$1,687.50
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Series 214762
- Application Power, Wire-to-Wire
- Jacket Color Red
- Max. Amps 8.5A
- Wire Gauge 18 AWG
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 2147622224
- Zoro # G605922247
- Country of Origin India
- Category High Temperature Lead Wire
Dimensions
Spool Length | 300 mm |
Cable Length | 300.00mm |
Wire Size (AWG) | 18 |
Wire Insulation Diameter | 1.85mm max. |
Details
Series | 214762 |
Application | Power, Wire-to-Wire |
Jacket Color | Red |
Max. Amps | 8.5A |
Wire Gauge | 18 AWG |
Conductor Material | Phosphor Bronze |
Standards | UL 10002 |
Material - Plating Termination | Tin |
Plating min - Mating | 0.762µm |
Product Name | Micro-Fit 3.0 |
Gender | Male-Male |
Material - Plating Mating | Gold |
Termination Interface Style | Crimp or Compression |
Connector to Connector | Micro-Fit 3.0 Crimp Terminals |
Single Ended | No |
Assembly Configuration | Pre-crimped Lead Only |
Circuits (Loaded) | 1 |
