Molex

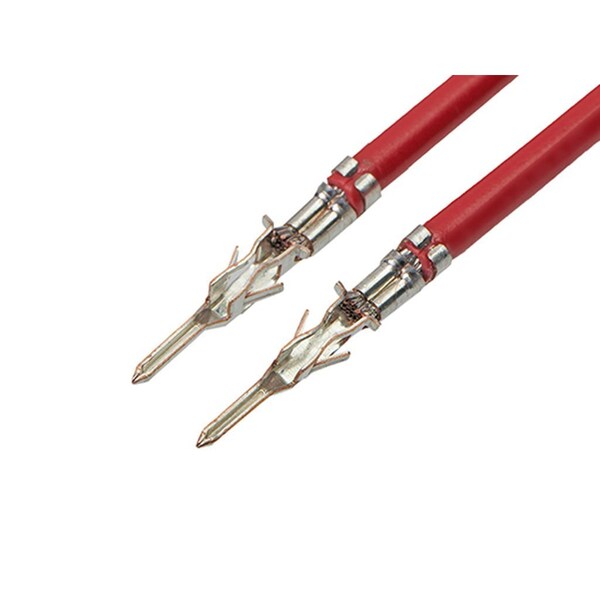

Pre-Crimped Lead Micro-Fit 3.0 Male-To-Micro-Fit 3.0 Male, Gold (Au) Plated

product price: $0.99
/ea
Sold in multiples of 95 for $94.05
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Series 214762
  • Application Power, Wire-to-Wire
  • Spool Length 150 mm
  • Jacket Color Red
  • Max. Amps 8.5A
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Spool Length 150 mm
Cable Length 150.00mm
Wire Size (AWG) 18
Wire Insulation Diameter 1.85mm max.

Details

Series 214762
Application Power, Wire-to-Wire
Jacket Color Red
Max. Amps 8.5A
Wire Gauge 18 AWG
Conductor Material Phosphor Bronze
Standards UL 10002
Single Ended No
Circuits (Loaded) 1
Assembly Configuration Pre-crimped Lead Only
Plating min - Mating 0.762µm
Material - Plating Mating Gold
Termination Interface Style Crimp or Compression
Product Name Micro-Fit 3.0
Material - Plating Termination Tin
Connector to Connector Micro-Fit 3.0 Crimp Terminals
Gender Male-Male
