  9. Pre-Crimped Lead Clik-Mate Male-To-Pigtail, Tin (Sn) Plated, 75.00Mm Length
Shop All High Temperature Lead Wire
Molex

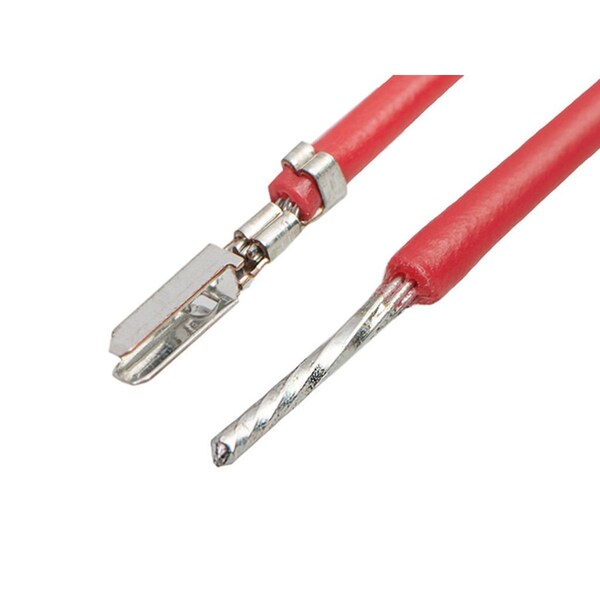

Pre-Crimped Lead Clik-Mate Male-To-Pigtail, Tin (Sn) Plated, 75.00Mm Length

product price: $0.88
/ea
Sold in multiples of 150 for $132.00
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 100V AC/DC
  • Standards UL 10002
  • Jacket Color Red
  • Conductor Material Copper Alloy
  • Wire Gauge 28 AWG
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Spool Length 75 mm
Wire Size (AWG) 28
Cable Length 75.00mm
Wire Insulation Diameter 0.78-1.28mm

Details

Voltage 100V AC/DC
Standards UL 10002
Jacket Color Red
Conductor Material Copper Alloy
Wire Gauge 28 AWG
Max. Amps 2 A
Series 215711
Application Signal, Wire-to-Board
Gender Male-Pigtail
Product Name CLIK-Mate
Termination Interface Style Crimp or Compression
Current - Maximum per Contact 2.0A
Assembly Configuration Pre-crimped Lead Only
Material - Plating Mating Tin
Plating min - Mating 0.406µm
Voltage - Maximum 100V AC (RMS)/DC
Connector to Connector CLIK-Mate Terminal-to-Pigtail
Single Ended Yes
Material - Plating Termination Tin
Circuits (Loaded) 1
