Shop All Terminal Blocks
Molex

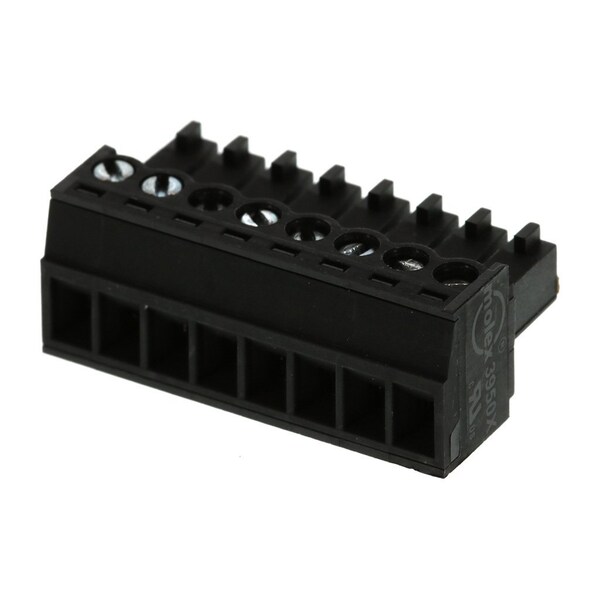

Pluggable Terminal Blocks Euro 3.5Mm Hor Plug 8 Circuits
Mfr # 395000008
Zoro # G305798272
product price: $3.19
/ea
Sold in multiples of 35 for $111.65
$111.65
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Type Euro Block
- Stackable No
- Current - Maximum per Contact 8.0A
- Pitch - Termination Interface 3.50mm
- Entry Angle Vertical
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 395000008
- Zoro # G305798272
- Country of Origin China
- Category Terminal Blocks
Dimensions
Wire Size AWG | 16, 18, 20, 22, 24, 30 |
Wire Size mm² | 0.05-1.50 |
Details
Type | Euro Block |
Stackable | No |
Current - Maximum per Contact | 8.0A |
Pitch - Termination Interface | 3.50mm |
Entry Angle | Vertical |
UL | E48521 |
Number of Rows | 1 |
Panel Mount | No |
Temperature Range - Operating | -40° to +105°C |
Circuits (Loaded) | 8 |
Polarized to Mating Part | Yes |
Lock to Mating Part | None |
Voltage - Maximum | 300V |
Orientation | Horizontal |
Pitch - Mating Interface | 3.50mm |
Component Type | Plug |
Product Name | ESE,Eurostyle Pluggable |
Series | 39500 |
