Molex

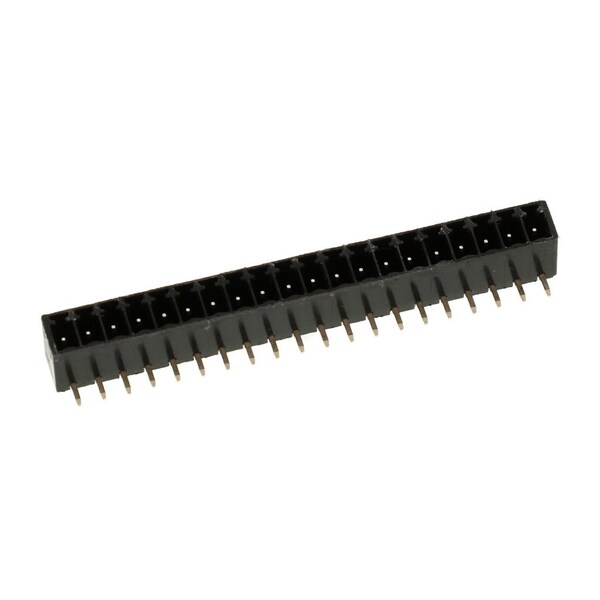

Pluggable Terminal Blocks 3.5Mm Hor Pcb Hdr 20 Circuits
Mfr # 395021020
Zoro # G705798148
Sold in multiples of 20 for $113.00
$113.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Type Euro Block
- Current - Maximum per Contact 8.0A
- Lock to Mating Part None
- Orientation Horizontal
- Pitch - Termination Interface 3.50mm
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Molex
- MFR # 395021020
- Zoro # G705798148
- Country of Origin China
- Category Terminal Blocks
Dimensions
PC Tail Length | 3.50mm |
Details
Type | Euro Block |
Current - Maximum per Contact | 8.0A |
Lock to Mating Part | None |
Orientation | Horizontal |
Pitch - Termination Interface | 3.50mm |
Circuits (Loaded) | 20 |
UL | E48521 |
Polarized to Mating Part | Yes |
Panel Mount | No |
PCB Thickness - Recommended | 2.50mm |
Pitch - Mating Interface | 3.50mm |
Number of Rows | 1 |
Shrouded | Fully |
Stackable | No |
Temperature Range - Operating | -40° to +105°C |
Voltage - Maximum | 300V |
Product Name | ESE,Eurostyle Pluggable |
Component Type | PCB Header |
Series | 39502 |
