Shop All Communication Cables
Molex

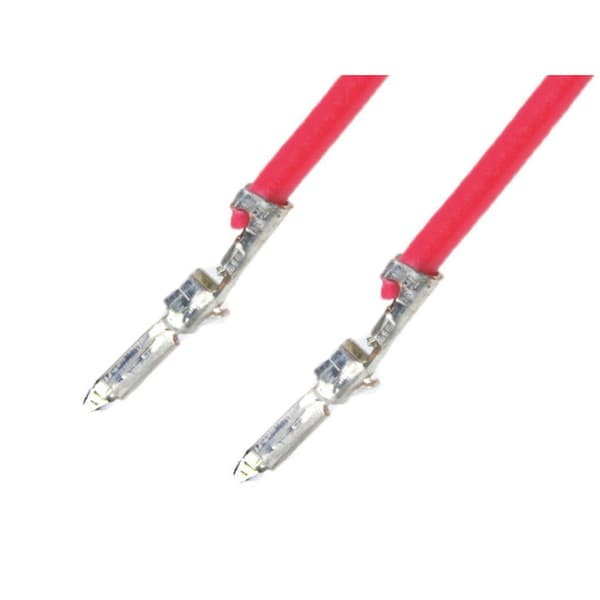

Picoblade Precrimp 26Awg Rd M-M L=300 Sn
Mfr # 2149221224
Zoro # G305925982
Sold in multiples of 3000 for $3,000.00
$3,000.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Series 214922
- Cable Length 300.00mm
- Color - Resin Red
- Material - Plating Termination Tin
- Material - Metal Phosphor Bronze
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Molex
- MFR # 2149221224
- Zoro # G305925982
- Country of Origin India
- Category Communication Cables
Dimensions
Cable Length | 300.00mm |
Wire Size AWG | 26 |
Wire Insulation Diameter | 0.50-1.00mm |
Details
Series | 214922 |
Color - Resin | Red |
Material - Plating Termination | Tin |
Material - Metal | Phosphor Bronze |
Voltage - Maximum | 125V AC (RMS)/DC |
Circuits (Loaded) | 1 |
Plating min - Mating | 0.889µm |
Current - Maximum per Contact | 1.0A |
Pitch - Mating Interface | 1.25mm |
Termination Interface: Style | Crimp or Compression |
Wire/Cable Type | UL 1061 |
Material - Plating Mating | Tin |
Gender | Male-Male |
Connector to Connector | PicoBlade Crimp Terminals |
Single Ended | No |
Product Name | PicoBlade |
Assembly Configuration | Pre-crimped Lead Only |
