Shop All Communication Cables
Molex

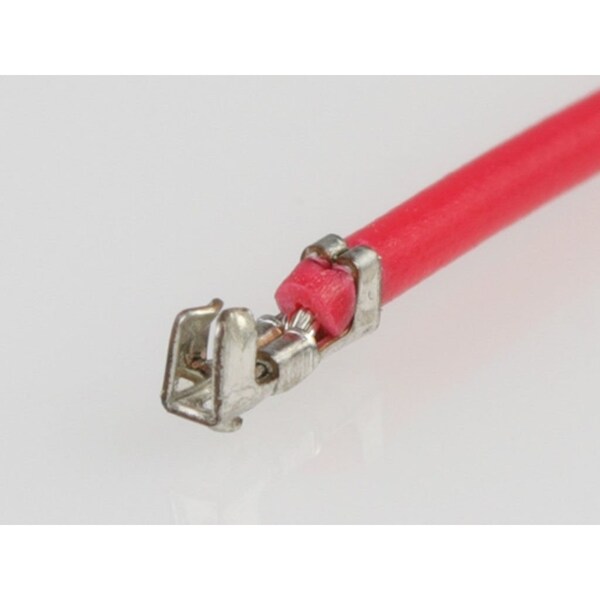

Picoblade Precrimp 26Awg Rd F-S L=75 Au
Mfr # 2149212221
Zoro # G205925907
Sold in multiples of 65 for $96.85
$96.85
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Cable Length 75.00mm
- Current - Maximum per Contact 1.0A
- Plating min - Mating 0.380µm
- Wire Insulation Diameter 1.04mm max.
- Wire Size AWG 26
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Molex
- MFR # 2149212221
- Zoro # G205925907
- Country of Origin India
- Category Communication Cables
Dimensions
Cable Length | 75.00mm |
Wire Insulation Diameter | 1.04mm max. |
Wire Size AWG | 26 |
Details
Current - Maximum per Contact | 1.0A |
Plating min - Mating | 0.380µm |
Single Ended | Yes |
Voltage - Maximum | 125V AC (RMS)/DC |
Circuits (Loaded) | 1 |
Wire/Cable Type | UL 1061 |
Termination Interface: Style | Crimp or Compression |
Color - Resin | Red |
Material - Plating Mating | Gold |
Material - Metal | Phosphor Bronze |
Material - Plating Termination | Tin |
Gender | Female-Pigtail |
Pitch - Mating Interface | 1.25mm |
