Shop All Communication Cables
Molex

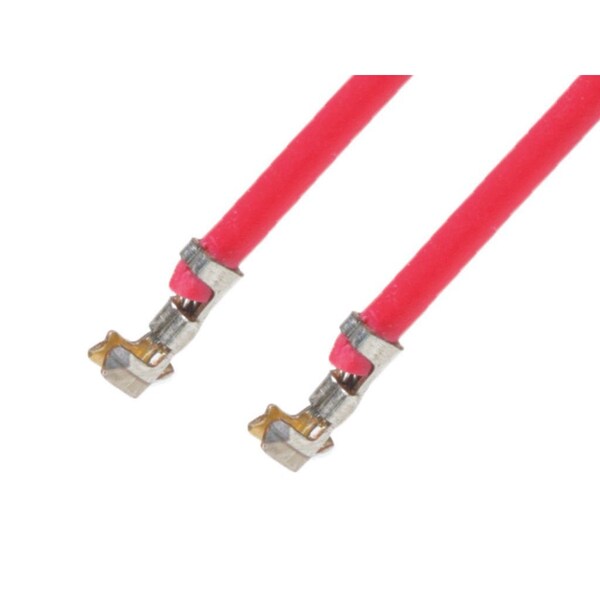

Picoblade Precrimp 26Awg Rd F-F L=75 Au
Mfr # 2149202221
Zoro # G105925816
product price: $1.35
/ea
Sold in multiples of 1250 for $1,687.50
$1,687.50
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Series 214920
- Cable Length 75.00mm
- Current - Maximum per Contact 1.0A
- Circuits (Loaded) 1
- Pitch - Mating Interface 1.25mm
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 2149202221
- Zoro # G105925816
- Country of Origin India
- Category Communication Cables
Dimensions
Cable Length | 75.00mm |
Wire Size AWG | 26 |
Wire Insulation Diameter | 1.04mm max. |
Details
Series | 214920 |
Current - Maximum per Contact | 1.0A |
Circuits (Loaded) | 1 |
Pitch - Mating Interface | 1.25mm |
Gender | Female-Female |
Plating min - Mating | 0.380µm |
Material - Plating Mating | Gold |
Termination Interface: Style | Crimp or Compression |
Material - Metal | Phosphor Bronze |
Color - Resin | Red |
Material - Plating Termination | Tin |
Wire/Cable Type | UL 1061 |
Voltage - Maximum | 125V AC (RMS)/DC |
Single Ended | No |
Assembly Configuration | Pre-crimped Lead Only |
Product Name | PicoBlade |
Connector to Connector | PicoBlade Crimp Terminals |
