  9. Picoblade Precrimp 26Awg Rd F-F L=150 Au
Shop All Communication Cables
Molex

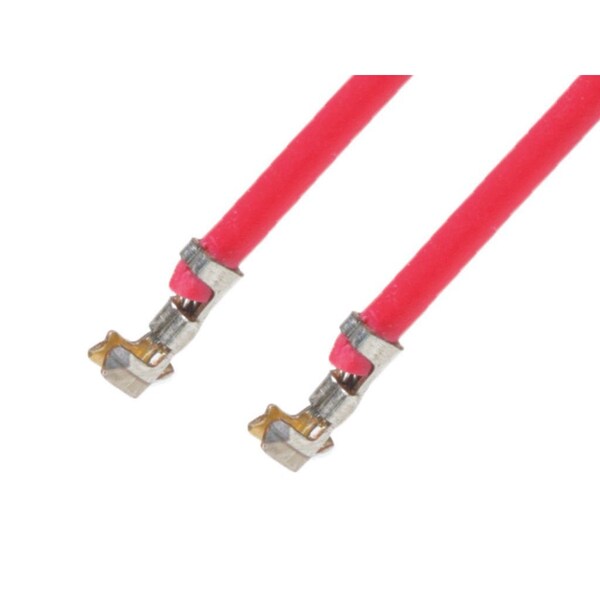

Picoblade Precrimp 26Awg Rd F-F L=150 Au

product price: $1.19
/ea
Sold in multiples of 2500 for $2,975.00
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Series 214920
  • Cable Length 150.00mm
  • Material - Plating Mating Gold
  • Gender Female-Female
  • Pitch - Mating Interface 1.25mm
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Cable Length 150.00mm
Wire Size AWG 26
Wire Insulation Diameter 1.04mm max.

Details

Series 214920
Material - Plating Mating Gold
Gender Female-Female
Pitch - Mating Interface 1.25mm
Circuits (Loaded) 1
Material - Metal Phosphor Bronze
Material - Plating Termination Tin
Color - Resin Red
Wire/Cable Type UL 1061
Termination Interface: Style Crimp or Compression
Current - Maximum per Contact 1.0A
Voltage - Maximum 125V AC (RMS)/DC
Plating min - Mating 0.380µm
Assembly Configuration Pre-crimped Lead Only
Single Ended No
Connector to Connector PicoBlade Crimp Terminals
Product Name PicoBlade
