  9. Picoblade Precrimp 26Awg Bk F-F L=75 Au
Shop All Communication Cables
Molex

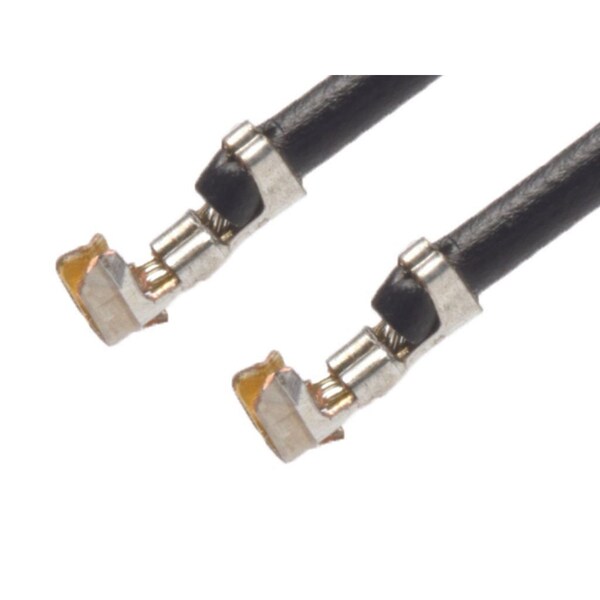

Picoblade Precrimp 26Awg Bk F-F L=75 Au

product price: $1.19
/ea
Sold in multiples of 2500 for $2,975.00
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Series 214920
  • Cable Length 75.00mm
  • Current - Maximum per Contact 1.0A
  • Wire Insulation Diameter 1.04mm max.
  • Circuits (Loaded) 1
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Cable Length 75.00mm
Wire Insulation Diameter 1.04mm max.
Wire Size AWG 26

Details

Series 214920
Current - Maximum per Contact 1.0A
Circuits (Loaded) 1
Material - Plating Termination Tin
Voltage - Maximum 125V AC (RMS)/DC
Pitch - Mating Interface 1.25mm
Material - Plating Mating Gold
Termination Interface: Style Crimp or Compression
Wire/Cable Type UL 1061
Gender Female-Female
Plating min - Mating 0.380µm
Material - Metal Phosphor Bronze
Color - Resin Black
Product Name PicoBlade
Assembly Configuration Pre-crimped Lead Only
Single Ended No
Connector to Connector PicoBlade Crimp Terminals
