  9. Picoblade Precrimp 26Awg Bk F-F L=300 Sn
Shop All Communication Cables
Molex

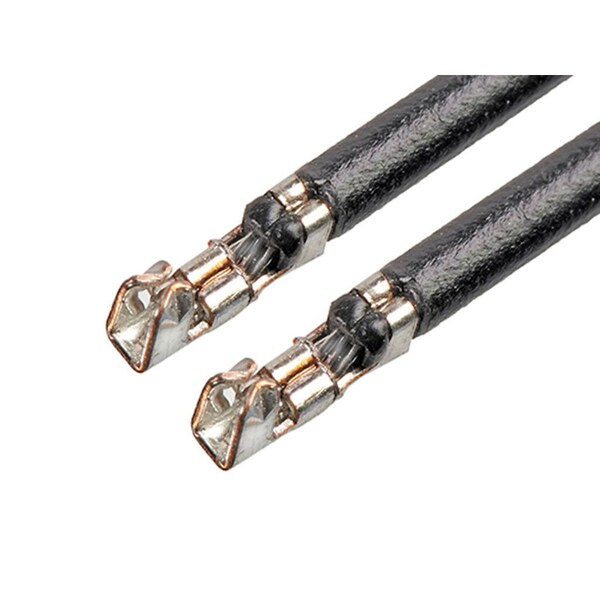

Picoblade Precrimp 26Awg Bk F-F L=300 Sn

product price: $1.15
/ea
Sold in multiples of 85 for $97.75
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Series 214920
  • Cable Length 300.00mm
  • Termination Interface: Style Crimp or Compression
  • Wire Size AWG 26
  • Wire/Cable Type UL 1061
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Cable Length 300.00mm
Wire Size AWG 26
Wire Insulation Diameter 1.04mm max.

Details

Series 214920
Termination Interface: Style Crimp or Compression
Wire/Cable Type UL 1061
Material - Plating Mating Tin
Material - Plating Termination Tin
Gender Female-Female
Plating min - Mating 0.889µm
Circuits (Loaded) 1
Color - Resin Black
Pitch - Mating Interface 1.25mm
Current - Maximum per Contact 1.0A
Voltage - Maximum 125V AC (RMS)/DC
Material - Metal Phosphor Bronze
Assembly Configuration Pre-crimped Lead Only
Single Ended No
Product Name PicoBlade
Connector to Connector PicoBlade Crimp Terminals
