  9. Picoblade Precrimp 26Awg Bk F-F L=150 Sn
Shop All Communication Cables
Molex

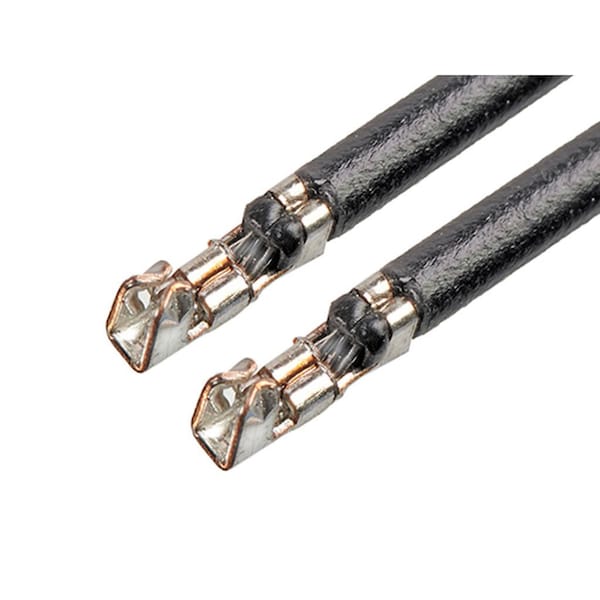

Picoblade Precrimp 26Awg Bk F-F L=150 Sn

product price: $1.15
/ea
Sold in multiples of 85 for $97.75
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Cable Length 150.00mm
  • Termination Interface: Style Crimp or Compression
  • Color - Resin Black
  • Circuits (Loaded) 1
  • Plating min - Mating 0.889µm
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Cable Length 150.00mm
Wire Size AWG 26
Wire Insulation Diameter 1.04mm max.

Details

Termination Interface: Style Crimp or Compression
Color - Resin Black
Circuits (Loaded) 1
Plating min - Mating 0.889µm
Material - Plating Termination Tin
Gender Female-Female
Current - Maximum per Contact 1.0A
Material - Metal Phosphor Bronze
Pitch - Mating Interface 1.25mm
Voltage - Maximum 125V AC (RMS)/DC
Wire/Cable Type UL 1061
Material - Plating Mating Tin
