  9. Pico-Spox 1.5 R-S 4Ckt 300Mm Disc Sn
Shop All Communication Cables
Molex

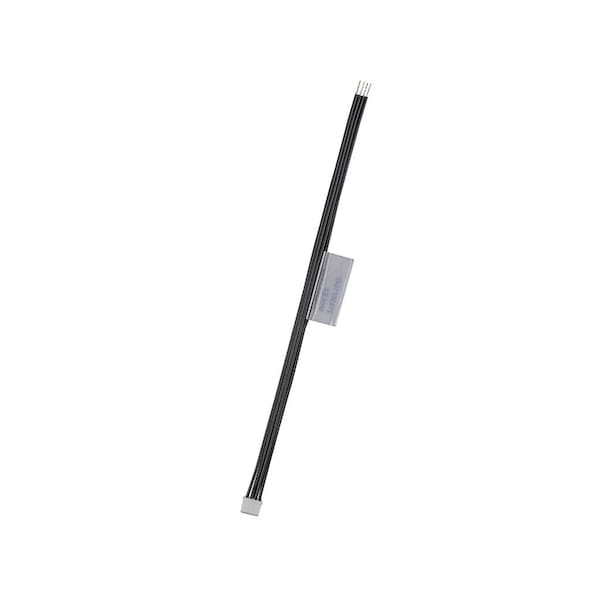

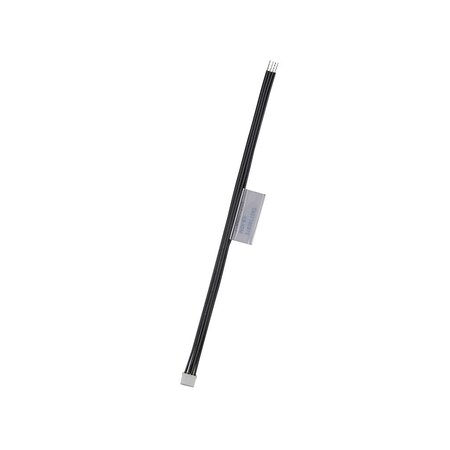

Pico-Spox 1.5 R-S 4Ckt 300Mm Disc Sn

product price: $2.45
/ea
Sold in multiples of 1150 for $2,817.50
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Series 218397
  • Application Signal, Wire-to-Board, Wire-to-Wire
  • Cable Length 300.00mm
  • Type Discrete Wire Assembly
  • Wire Insulation Diameter 0.95-1.20mm
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Cable Length 300.00mm
Wire Insulation Diameter 0.95-1.20mm
Wire Size (AWG) 24

Details

Series 218397
Application Signal, Wire-to-Board, Wire-to-Wire
Type Discrete Wire Assembly
Single Ended Yes
Product Name Pico-SPOX
Termination Interface Style Crimp or Compression
Circuits (Loaded) 4
Assembly Configuration Single Ended Connector
Number of Rows 1
Lock to Mating Part Yes
Color - Resin Natural
Voltage - Maximum 250V
Material - Plating Mating Tin
Pitch - Mating Interface 1.50mm
Gender Female-Pigtail
Current - Maximum per Contact 2.5A
Material - Metal Phosphor Bronze
Material - Resin Nylon
Wire/Cable Type UL 10002
Plating min - Mating 2.540µm
