Molex

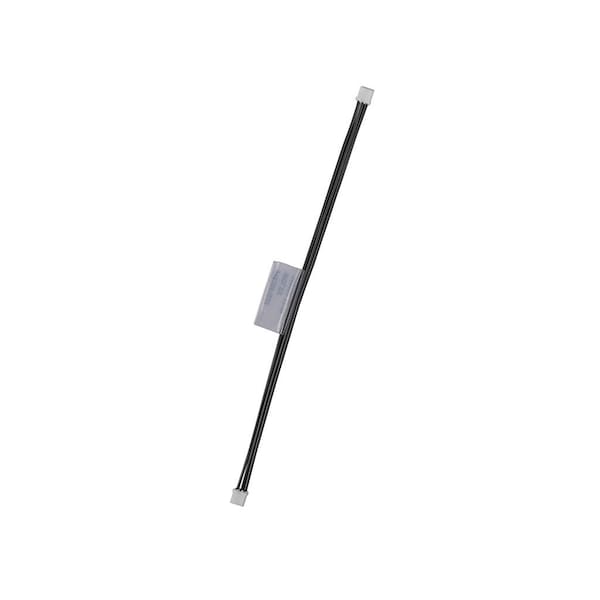

Pico-Spox 1.5 R-R 3Ckt 50Mm Disc Sn
Mfr # 2183961030
Zoro # G205925655
Sold in multiples of 1250 for $2,812.50
$2,812.50
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Series 218396
- Type Discrete Wire Assembly
- Cable Length 50.00mm
- Application Signal, Wire-to-Board, Wire-to-Wire
- Voltage - Maximum 250V
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Molex
- MFR # 2183961030
- Zoro # G205925655
- Country of Origin India
- Category Communication Cables
Dimensions
Cable Length | 50.00mm |
Wire Size (AWG) | 24 |
Wire Insulation Diameter | 0.95-1.20mm |
Details
Series | 218396 |
Type | Discrete Wire Assembly |
Application | Signal, Wire-to-Board, Wire-to-Wire |
Voltage - Maximum | 250V |
Current - Maximum per Contact | 2.5A |
Material - Plating Mating | Tin |
Pitch - Mating Interface | 1.50mm |
Number of Rows | 1 |
Gender | Female-Female |
Product Name | Pico-SPOX |
Assembly Configuration | Dual Ended Connectors |
Plating min - Mating | 2.540µm |
Circuits (Loaded) | 3 |
Material - Metal | Phosphor Bronze |
Color - Resin | Natural |
Wire/Cable Type | UL 10002 |
Termination Interface Style | Crimp or Compression |
Material - Resin | Nylon |
Single Ended | No |
Lock to Mating Part | Yes |
