Shop All Wire Terminals
Molex

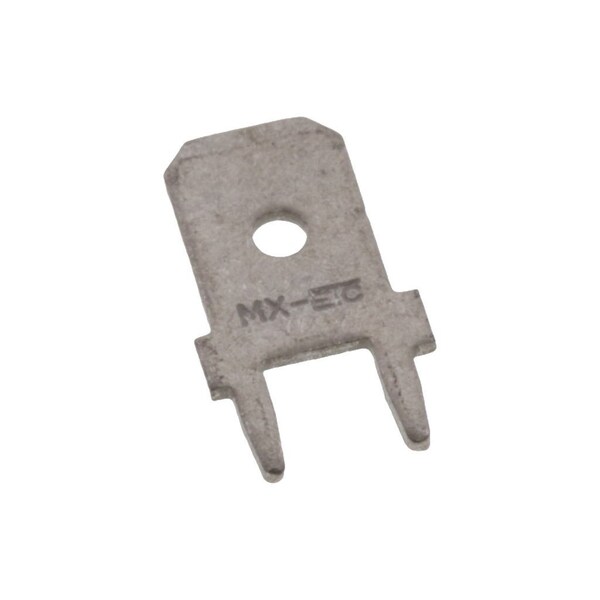

Pcb Term..250X.032 Loose Plt (197054301)
Mfr # 197054301
Zoro # G105900332
Sold in multiples of 750 for $90.00
$90.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Insulation Type Non-Insulated
- Connection Material Brass
- Standards UL E79133
- Connection Type Male
- Material - Plating Termination Tin
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Molex
- MFR # 197054301
- Zoro # G105900332
- Country of Origin United States
- Category Wire Terminals
Dimensions
Tab Width | 6.35mm |
Details
Insulation Type | Non-Insulated |
Connection Material | Brass |
Standards | UL E79133 |
Connection Type | Male |
Material - Plating Termination | Tin |
Material - Plating Mating | Tin |
Lock to Mating Part | None |
UL | E79133 |
Tab Thickness | 0.81mm |
Type | Quick Disconnect |
Polarized to Mating Part | No |
Insulated | No |
Product Name | PCB Tab |
Glow-Wire Capable | No |
Orientation | PCB Straight Tab |
Insulation | None |
Plating min - Mating | 3.810µm |
Series | 19705 |
