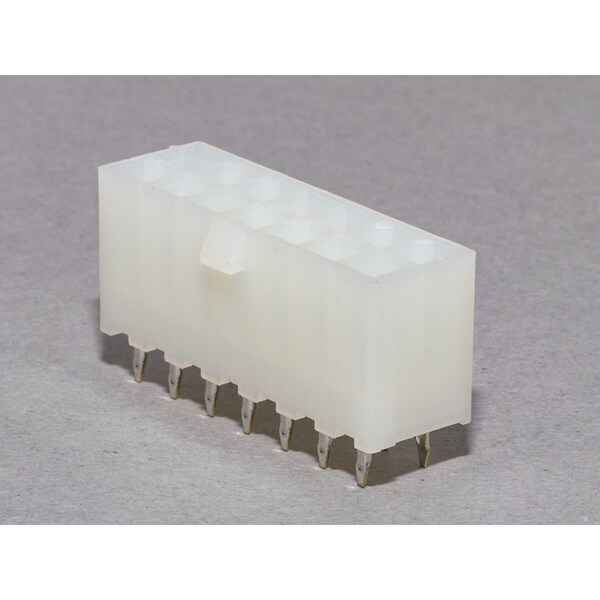

New Mini Fit Header Assy 14Ckt

Name: New Mini Fit Header Assy 14Ckt
Brand: Molex
SKU: G4036992
Price: 168.75 USD
Availability: InStock

$2.25

/ea

Sold in multiples of 75 for $168.75

Free Shipping on orders over $50

after you

Free 30-Day Returns

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Accepted Payment Options

Net 30

Product Information

PC Tail Length

3.50mm

Circuits (Loaded)	14
Max. Cycles at Max. Process Temperature	1
Plating min - Mating	0.889µm
Current - Maximum per Contact	9.0A
Termination Interface: Style	Through Hole
Circuits (maximum)	14
Polarized to Mating Part	Yes
Shrouded	Fully
PCB Locator	Yes
PCB Thickness - Recommended	1.60mm
Voltage - Maximum	600V
Pitch - Mating Interface	4.20mm
Polarized to PCB	Yes
Temperature Range - Operating	-40° to +105°C
UL	E29179
Lock to Mating Part	Yes
Process Temperature max. C	240
Material - Plating Termination	Tin
Durability (mating cycles max)	30
Material - Metal	Brass
Plating min - Termination	0.889µm
Material - Resin	Nylon
Pitch - Termination Interface	4.20mm
Number of Rows	2
Duration at Max. Process Temperature (seconds)	5
Material - Plating Mating	Tin
CSA	LR19980
Orientation	Vertical
Color - Resin	Natural
Flammability	94V-2
