Molex

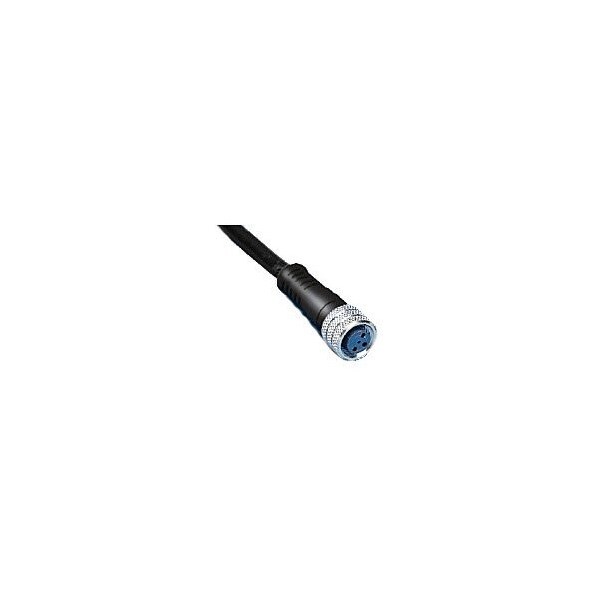

NC-4P-FE-ST-2M-PVC-NUT-0.25

product price: $29.19
/ea
Sold in multiples of 3 for $87.57
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Cable Length 2.0m (6.56')
  • Keyway Single
  • Current - Maximum per Contact 3.0A
  • Wire/Cable Type UL 2464
  • Orientation Straight to Pigtail
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Cable Length 2.0m (6.56')
Cable Diameter 5.08mm (.200")

Details

Keyway Single
Current - Maximum per Contact 3.0A
Wire/Cable Type UL 2464
Orientation Straight to Pigtail
Material - O-Ring Fluoro-elastomer
LED Indicator No
Coupling Style Threaded
Gender Female-Pigtail
Material - Plating Mating Gold
Material - Cable Jacket PVC
UL E152210
Color - Cable Jacket Black
Material - Coupling Nut Nickel-plated Brass
Material - Connector Body PUR
Poles 4
Voltage - Maximum 60V
Temperature Range - Operating -25°C to +80°C
