Molex

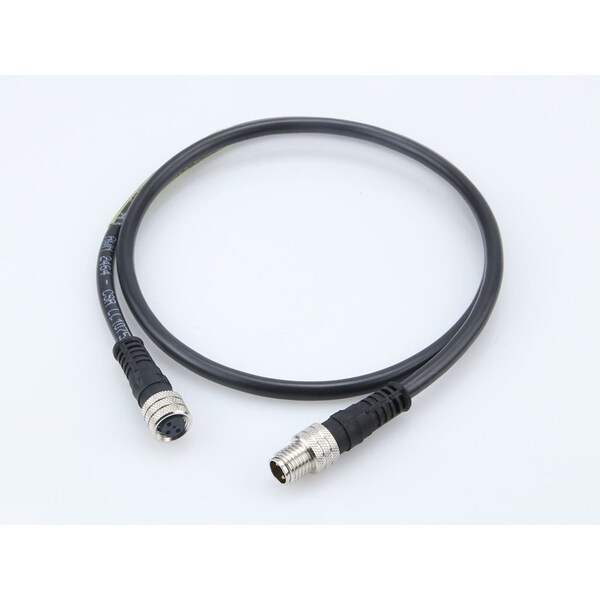

NC-3P-FE/MM-ST/ST-1M-PVC-NUT-0.25

product price: $37.15
/ea
Sold in multiples of 2 for $74.30
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Cable Length 1.0m (3.28')
  • Keyway None
  • Wire/Cable Type UL 2464
  • Coupling Style Threaded
  • Material - Cable Jacket PVC
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Cable Length 1.0m (3.28')
Cable Diameter 5.00mm (.197")
Wire Size AWG 24

Details

Keyway None
Wire/Cable Type UL 2464
Coupling Style Threaded
Material - Cable Jacket PVC
Color - Cable Jacket Yellow
Material - Connector Body PUR
Poles 3
LED Indicator No
Gender Female-Male
Material - Plating Mating Gold
Voltage - Maximum 60V
Material - Coupling Nut Nickel-plated Brass
Material - O-Ring Fluoro-elastomer
Orientation Straight to Straight
Temperature Range - Operating -25°C to +80°C
Current - Maximum per Contact 3.0A
