Shop All Headers & Wire Housings
Molex

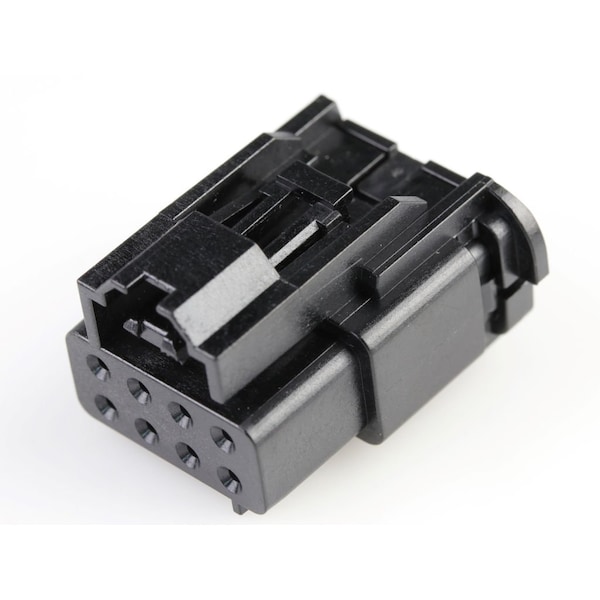

Multicat Mid-Power Receptacle Housing, 8 Circuits, Key A, Black, Without Cpa
Mfr # 2059260010
Zoro # G205917032
Sold in multiples of 30 for $85.50
$85.50
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Color Black
- Number of Rows 2
- Series 205926
- Application Power, Wire-to-Board, Wire-to-Wire
- Standards UL E29179
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Molex
- MFR # 2059260010
- Zoro # G205917032
- Country of Origin Germany
- Category Headers & Wire Housings
Details
Color | Black |
Number of Rows | 2 |
Series | 205926 |
Application | Power, Wire-to-Board, Wire-to-Wire |
Standards | UL E29179 |
Material | Polyetherimide |
Hole Center to Center | 3.6 mm |
Connector Type | Receptacle |
Max. Temp. | 150°C |
Number of Contacts | 8 |
Flammability Rating | UL 94V-0 |
Current Rating | 6.5 A |
Keying to Mating Part | Yes |
Flammability | 94V-0 |
Product Name | MultiCat |
Polarized to Mating Part | Yes |
Lock to Mating Part | Yes |
Circuits (maximum) | 8 |
UL | E29179 |
Temperature Range - Operating | -40° to +150°C |
Material - Resin | PEI |
Pitch - Mating Interface | 3.60mm |
Glow-Wire Capable | No |
