Shop All High Temperature Lead Wire
Molex

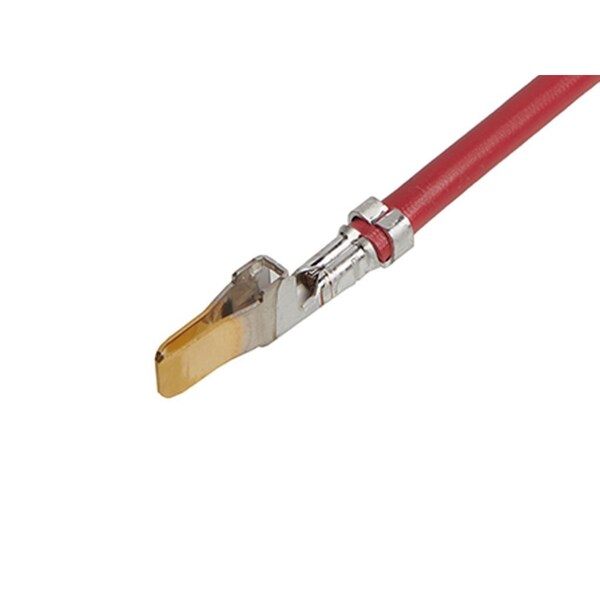

Minifit Sr. M-S 300Mm 12 Awg Lead Rd Au
Mfr # 2174832204
Zoro # G005922533
product price: $4.19
/ea
Sold in multiples of 625 for $2,618.75
$2,618.75
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Series 217483
- Application Power, Wire-to-Wire
- Plating min - Mating 0.762µm
- Single Ended Yes
- Material - Plating Termination Tin
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Molex
- MFR # 2174832204
- Zoro # G005922533
- Country of Origin India
- Category High Temperature Lead Wire
Dimensions
| Wire Size (AWG) | 12 |
| Cable Length | 300.00mm |
| Wire Insulation Diameter | 6.60mm max. |
Details
| Series | 217483 |
| Application | Power, Wire-to-Wire |
| Plating min - Mating | 0.762µm |
| Single Ended | Yes |
| Material - Plating Termination | Tin |
| Gender | Male-Pigtail |
| Wire/Cable Type | UL 10669 |
| Lock to Mating Part | Yes |
| Material - Resin | PVC |
| Material - Plating Mating | Gold |
| Color - Resin | Red |
| Current - Maximum per Contact | 23.0A |
| Termination Interface Style | Crimp or Compression |
| Product Name | Mini-Fit Sr. |
| Number of Rows | 1 |
| Connector to Connector | Mini-Fit Sr. Crimp Terminals |
| Circuits (Loaded) | 1 |
| Assembly Configuration | Pre-crimped Lead Only |
| Material - Metal | High Performance Alloy (HPA) |
