Shop All High Temperature Lead Wire
Molex

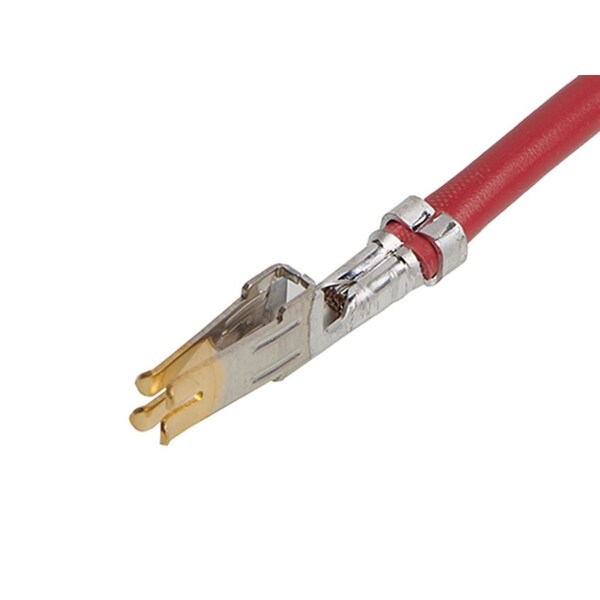

Minifit Sr. F-S 450Mm 10 Awg Lead Rd Au
Mfr # 2174812215
Zoro # G405922348
Sold in multiples of 450 for $2,605.50
$2,605.50
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Series 217481
- Application Power, Wire-to-Board, Wire-to-Wire
- Wire Size (AWG) 10
- Material - Metal High Performance Alloy (HPA)
- Wire Insulation Diameter 6.60mm max.
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Molex
- MFR # 2174812215
- Zoro # G405922348
- Country of Origin India
- Category High Temperature Lead Wire
Dimensions
Wire Size (AWG) | 10 |
Wire Insulation Diameter | 6.60mm max. |
Cable Length | 450.00mm |
Details
Series | 217481 |
Application | Power, Wire-to-Board, Wire-to-Wire |
Material - Metal | High Performance Alloy (HPA) |
Lock to Mating Part | Yes |
Current - Maximum per Contact | 33.0A |
Single Ended | Yes |
Material - Resin | PVC |
Gender | Female-Pigtail |
Material - Plating Mating | Gold |
Wire/Cable Type | UL 10669 |
Number of Rows | 1 |
Circuits (Loaded) | 1 |
Color - Resin | Red |
Termination Interface Style | Crimp or Compression |
Product Name | Mini-Fit Sr. |
Assembly Configuration | Pre-crimped Lead Only |
Plating min - Mating | 0.762µm |
Connector to Connector | Mini-Fit Sr. Crimp Terminals |
Material - Plating Termination | Tin |
