Molex

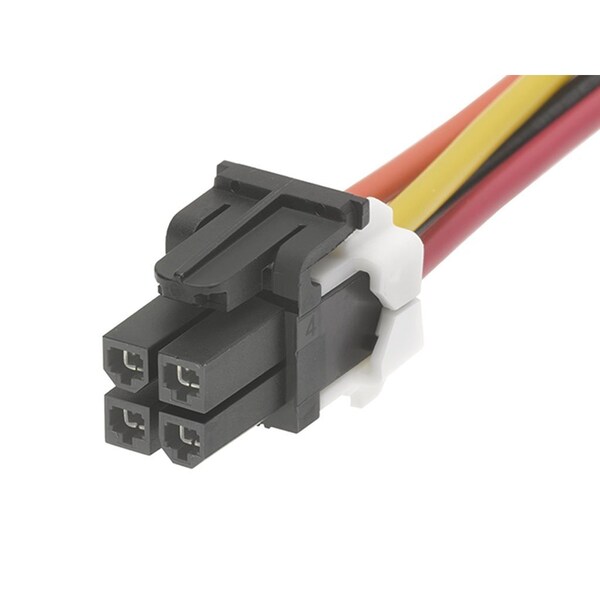

Minifit 4 Circuit 1M Cable Assembly

product price: $6.69
/ea
Sold in multiples of 20 for $133.80
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Cable Length 1.0m
  • Current - Maximum per Contact 8.0A
  • Material - Metal Brass
  • Plating min - Termination 0.889µm
  • Color - Resin Black
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Cable Length 1.0m
Wire Size AWG 16
Wire Insulation Diameter 2.35mm

Details

Current - Maximum per Contact 8.0A
Material - Metal Brass
Plating min - Termination 0.889µm
Color - Resin Black
Plating min - Mating 0.889µm
Gender Female-Female
Material - Plating Mating Tin
Number of Rows 2
Pitch - Mating Interface 4.20mm
Material - Plating Termination Tin
Lock to Mating Part Yes
Wire/Cable Type UL 1007
Material - Resin Nylon
Termination Interface: Style Crimp or Compression
Voltage - Maximum 300V
Circuits (Loaded) 4
