Shop All High Temperature Lead Wire
Molex

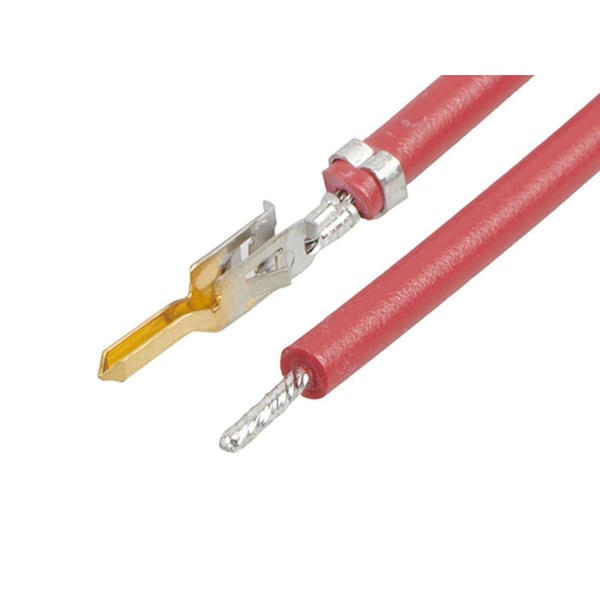

Mini-Fit Jr. M-S 75Mm 18 Awg Rd Au
Mfr # 2153432211
Zoro # G305922127
product price: $1.35
/ea
Sold in multiples of 95 for $128.25
$128.25
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Series 215343
- Application Power, Wire-to-Wire
- Conductor Material Brass
- Standards UL 1015
- Max. Amps 9 A
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Molex
- MFR # 2153432211
- Zoro # G305922127
- Country of Origin Thailand
- Category High Temperature Lead Wire
Dimensions
Spool Length | 75 mm |
Wire Size (AWG) | 18 |
Cable Length | 75.00mm |
Wire Insulation Diameter | 1.80-3.10mm |
Details
Series | 215343 |
Application | Power, Wire-to-Wire |
Conductor Material | Brass |
Standards | UL 1015 |
Max. Amps | 9 A |
Voltage | 600V |
Wire Gauge | 18 AWG |
Jacket Color | Red |
Connector to Connector | Mini-Fit Jr. Term-to-Pigtail |
Gender | Male-Pigtail |
Product Name | Mini-Fit Jr. |
Material - Plating Termination | Tin |
Material - Plating Mating | Gold |
Single Ended | Yes |
Assembly Configuration | Pre-crimped Lead Only |
Circuits (Loaded) | 1 |
Termination Interface Style | Crimp or Compression |
Current - Maximum per Contact | 9.0A |
