  9. Mini-Fit Jr. M-S 225Mm 20 Awg Bk Sn
Shop All High Temperature Lead Wire
Molex

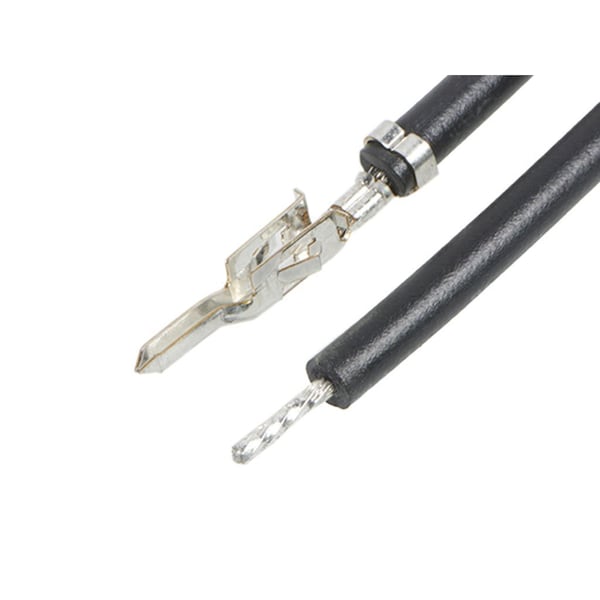

Mini-Fit Jr. M-S 225Mm 20 Awg Bk Sn

product price: $1.29
/ea
Sold in multiples of 75 for $96.75
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Series 215343
  • Application Power, Wire-to-Wire
  • Max. Amps 9 A
  • Wire Gauge 20 AWG
  • Conductor Material Brass
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Spool Length 225 mm
Wire Size (AWG) 20
Cable Length 225.00mm
Wire Insulation Diameter 1.80-3.10mm

Details

Series 215343
Application Power, Wire-to-Wire
Max. Amps 9 A
Wire Gauge 20 AWG
Conductor Material Brass
Jacket Color Black
Voltage 600V
Standards UL 1015
Material - Plating Mating Tin
Current - Maximum per Contact 9.0A
Circuits (Loaded) 1
Single Ended Yes
Connector to Connector Mini-Fit Jr. Term-to-Pigtail
Product Name Mini-Fit Jr.
Material - Plating Termination Tin
Gender Male-Pigtail
Termination Interface Style Crimp or Compression
Assembly Configuration Pre-crimped Lead Only
