Shop All High Temperature Lead Wire
Molex

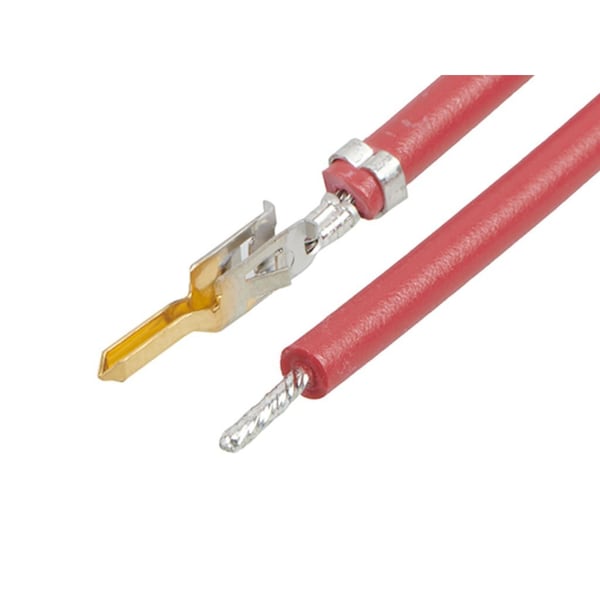

Mini-Fit Jr. M-S 225Mm 18 Awg Rd Au
Mfr # 2153432213
Zoro # G405922058
Sold in multiples of 95 for $128.25
$128.25
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Series 215343
- Application Power, Wire-to-Wire
- Jacket Color Red
- Conductor Material Brass
- Spool Length 225 mm
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Molex
- MFR # 2153432213
- Zoro # G405922058
- Country of Origin India
- Category High Temperature Lead Wire
Dimensions
Spool Length | 225 mm |
Cable Length | 225.00mm |
Wire Insulation Diameter | 1.80-3.10mm |
Wire Size (AWG) | 18 |
Details
Series | 215343 |
Application | Power, Wire-to-Wire |
Jacket Color | Red |
Conductor Material | Brass |
Voltage | 600V |
Wire Gauge | 18 AWG |
Standards | UL 1015 |
Max. Amps | 9 A |
Single Ended | Yes |
Current - Maximum per Contact | 9.0A |
Circuits (Loaded) | 1 |
Connector to Connector | Mini-Fit Jr. Term-to-Pigtail |
Assembly Configuration | Pre-crimped Lead Only |
Material - Plating Termination | Tin |
Termination Interface Style | Crimp or Compression |
Gender | Male-Pigtail |
Material - Plating Mating | Gold |
Product Name | Mini-Fit Jr. |
