Molex

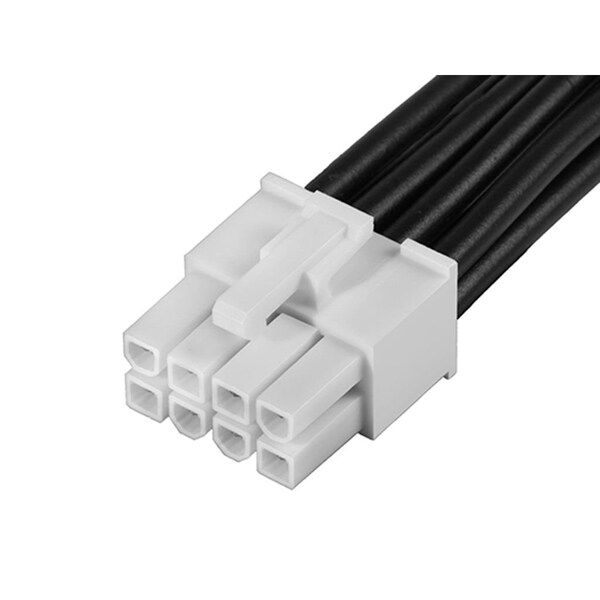

Mini-Fit Jr. Female-To-Mini-Fit Jr. Female Off-The-Shelf (Ots) Cable Assembly

product price: $6.69
/ea
Sold in multiples of 400 for $2,676.00
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Cable Length 150.00mm
  • Plating min - Mating 0.889µm
  • Material - Plating Termination Tin
  • Color - Resin Black
  • Current - Maximum per Contact 9.0A
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Cable Length 150.00mm
Wire Size AWG 16
Wire Insulation Diameter 1.80-3.10mm

Details

Plating min - Mating 0.889µm
Material - Plating Termination Tin
Color - Resin Black
Current - Maximum per Contact 9.0A
Number of Rows 2
Plating min - Termination 0.889µm
Gender Female-Female
Circuits (Loaded) 8
Material - Metal Brass
Lock to Mating Part Yes
Material - Plating Mating Tin
Material - Resin Nylon
Termination Interface: Style Crimp or Compression
Voltage - Maximum 600V
Wire/Cable Type UL 1015
Pitch - Mating Interface 4.20mm
