Shop All High Temperature Lead Wire
Molex

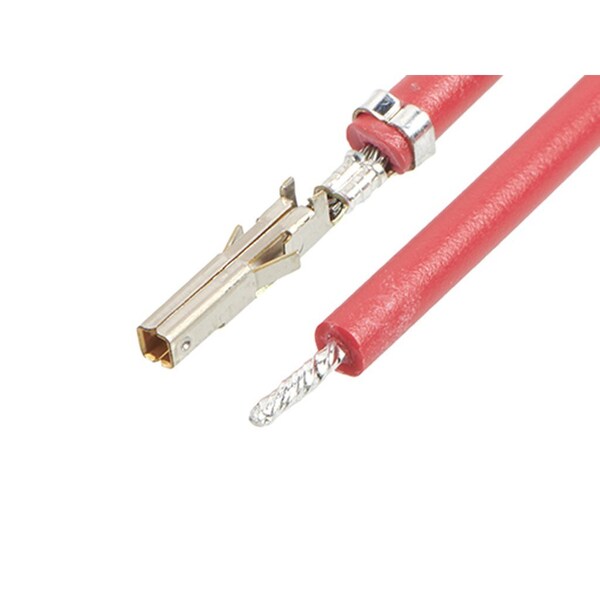

Mini-Fit Jr. F-S 300Mm 16 Awg Rd Au
Mfr # 2153412224
Zoro # G305922110
Sold in multiples of 1250 for $1,687.50
$1,687.50
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Series 215341
- Application Power, Wire-to-Board, Wire-to-Wire
- Max. Amps 9 A
- Spool Length 300 mm
- Standards UL 1015
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Molex
- MFR # 2153412224
- Zoro # G305922110
- Country of Origin India
- Category High Temperature Lead Wire
Dimensions
Spool Length | 300 mm |
Wire Size (AWG) | 16 |
Cable Length | 300.00mm |
Wire Insulation Diameter | 1.80-3.10mm |
Details
Series | 215341 |
Application | Power, Wire-to-Board, Wire-to-Wire |
Max. Amps | 9 A |
Standards | UL 1015 |
Jacket Color | Red |
Voltage | 600V |
Conductor Material | Brass |
Wire Gauge | 16 AWG |
Current - Maximum per Contact | 9.0A |
Assembly Configuration | Pre-crimped Lead Only |
Connector to Connector | Mini-Fit Jr. Term-to-Pigtail |
Single Ended | Yes |
Termination Interface Style | Crimp or Compression |
Material - Plating Termination | Tin |
Material - Plating Mating | Gold |
Gender | Female-Pigtail |
Circuits (Loaded) | 1 |
Product Name | Mini-Fit Jr. |
